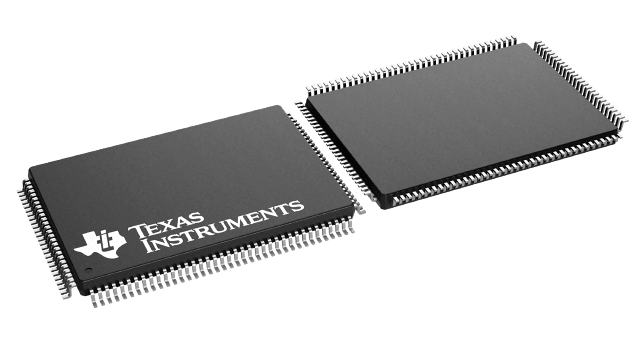

MSP430F67781AIPEUR Texas Instruments - Yeehing Electronics

Polyphase metering SoC with 7 Sigma-Delta ADCs, LCD, real-time clock, 512KB Flash, 16KB RAM

Pricing (USD)

Quantity	Unit Price
1 — 99	10.964
100 — 249	9.577
250 — 999	7.384
1,000 +	4.62

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Metering Systems on a Chip - SoC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	LQFP-128
Series	MSP430F67781A
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	25 MHz
Program Memory Size	512 kB
Data RAM Size	16 kB
ADC Resolution	10 bit, 24 bit
Number of I/Os	90 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	1.45 mm
Length	20 mm
Program Memory Type	Flash
Width	20 mm
Brand	Texas Instruments
Data RAM Type	SRAM
Interface Type	I2C, SPI, UART
Moisture Sensitive	Yes
Number of Timers/Counters	4 Timer
Processor Series	MSP430
Product Type	SOC - Metering Systems on a Chip
Factory Pack Quantity	750
Subcategory	SOC - Systems on a Chip
Tradename	MSP430
Unit Weight	0.021693 oz

For more information, please refer to datasheet

Documents

MSP430F67781AIPEUR Datasheet

More Information

MSP430F67xx1A polyphase metering SoCs are powerful highly integrated solutions that offer high accuracy and low system cost with few external components. The MSP430F67xx1A microcontroller (MCU) family is part of the MSP430™ Metrology and Monitoring MCU portfolio targeting energy measurement and power monitoring applications including smart grid and building automation.
