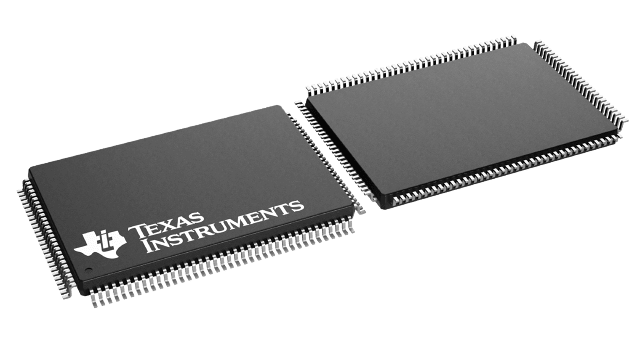

MSP430F67791AIPEU Texas Instruments - Yeehing Electronics
Polyphase metering SoC with 7 Sigma-Delta ADCs, LCD, real-time clock, 512KB Flash, 32KB RAM
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.976 |
| 100 — 249 | 11.335 |
| 250 — 999 | 8.739 |
| 1,000 + | 5.47 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Metering Systems on a Chip - SoC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-128 |
| Series | MSP430F67791A |
| Core | MSP430 |
| Data Bus Width | 16 bit |
| Maximum Clock Frequency | 25 MHz |
| Program Memory Size | 512 kB |
| Data RAM Size | 32 kB |
| ADC Resolution | 10 bit, 24 bit |
| Number of I/Os | 90 I/O |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Data RAM Type | SRAM |
| Interface Type | I2C, SPI, UART |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 4 Timer |
| Processor Series | MSP430 |
| Product Type | SOC - Metering Systems on a Chip |
| Factory Pack Quantity | 72 |
| Subcategory | SOC - Systems on a Chip |
| Tradename | MSP430 |
| Unit Weight | 0.021693 oz |
For more information, please refer to datasheet
Documents
| MSP430F67791AIPEU Datasheet |
More Information
MSP430F67xx1A polyphase metering SoCs are powerful highly integrated solutions that offer high accuracy and low system cost with few external components. The MSP430F67xx1A microcontroller (MCU) family is part of the MSP430™ Metrology and Monitoring MCU portfolio targeting energy measurement and power monitoring applications including smart grid and building automation.
