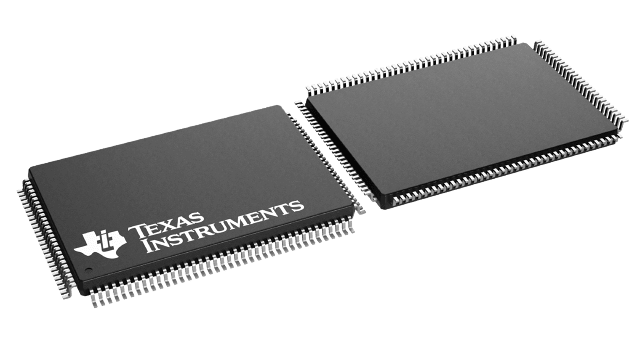

MSP430F67791IPEUR Texas Instruments - Yeehing Electronics

Polyphase metering SoC with 7 Sigma-Delta ADCs, LCD, real-time clock, 512KB Flash, 32KB RAM

Pricing (USD)

Quantity	Unit Price
1 — 99	10.964
100 — 249	9.577
250 — 999	7.384
1,000 +	10.29

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Metering Systems on a Chip - SoC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	LQFP-128
Series	MSP430F67791
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	25 MHz
Program Memory Size	512 kB
Data RAM Size	32 kB
ADC Resolution	10 bit, 24 bit
Number of I/Os	90 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Program Memory Type	Flash
Brand	Texas Instruments
Data RAM Type	SRAM
Interface Type	I2C, SPI, UART
Moisture Sensitive	Yes
Number of Timers/Counters	4 Timer
Processor Series	MSP430
Product Type	SOC - Metering Systems on a Chip
Factory Pack Quantity	750
Subcategory	SOC - Systems on a Chip
Tradename	MSP430
Unit Weight	0.021693 oz

For more information, please refer to datasheet

Documents

MSP430F67791IPEUR Datasheet

More Information

The TI MSP430F677x1 family of polyphase metering SoCs are powerful highly integrated solutions for revenue meters that offer accuracy and low system cost with few external components. The F677x1 family of devices uses the low-power MSP430 CPU with a 32-bit multiplier to perform all energy calculations, metering applications such as tariff rate management, and communications with AMR and AMI modules.
