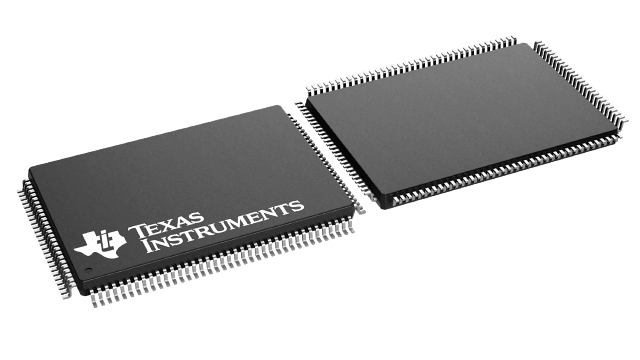

MSP430F6779IPEUR Texas Instruments - Yeehing Electronics
Polyphase metering SoC with 7 Sigma-Delta ADCs, LCD, real-time clock, AES, 512KB Flash, 32KB RAM
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 10.964 |
100 — 249 | 9.577 |
250 — 999 | 7.384 |
1,000 + | 4.62 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Metering Systems on a Chip - SoC |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | LQFP-128 |
Series | MSP430F6779 |
Core | MSP430 |
Data Bus Width | 16 bit |
Maximum Clock Frequency | 25 MHz |
Program Memory Size | 512 kB |
Data RAM Size | 32 kB |
ADC Resolution | 10 bit, 24 bit |
Number of I/Os | 90 I/O |
Operating Supply Voltage | 1.8 V to 3.6 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Program Memory Type | Flash |
Brand | Texas Instruments |
Data RAM Type | SRAM |
Interface Type | I2C, SPI, UART |
Moisture Sensitive | Yes |
Number of Timers/Counters | 4 Timer |
Processor Series | MSP430 |
Product Type | SOC - Metering Systems on a Chip |
Factory Pack Quantity | 750 |
Subcategory | SOC - Systems on a Chip |
Tradename | MSP430 |
Unit Weight | 0.021693 oz |
For more information, please refer to datasheet
Documents
MSP430F6779IPEUR Datasheet |
More Information
The TI MSP430F677x family of polyphase metering SoCs are powerful highly integrated solutions for revenue meters that offer accuracy and low system cost with few external components. The F677x family of devices uses the low-power MSP430 CPU with a 32-bit multiplier to perform all energy calculations, metering applications such as tariff rate management, and communications with AMR and AMI modules.
