MSP430FR2353TRHAR


YeeHing #: Y010-MSP430FR2353TRHAR
Inventory: 2800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

MSP430FR2353TRHAR Texas Instruments - Yeehing Electronics

24 MHz 105 C integrated analog microcontroller with 16 KB FRAM, Op-Amps/PGAs, 12-bit DACs, 12-bit AD

Pricing (USD)

Quantity Unit Price
1 — 99 2.252
100 — 249 1.836
250 — 999 1.443
1,000 + 0.86

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 16-bit Microcontrollers - MCU
RoHS Y
Mounting Style SMD/SMT

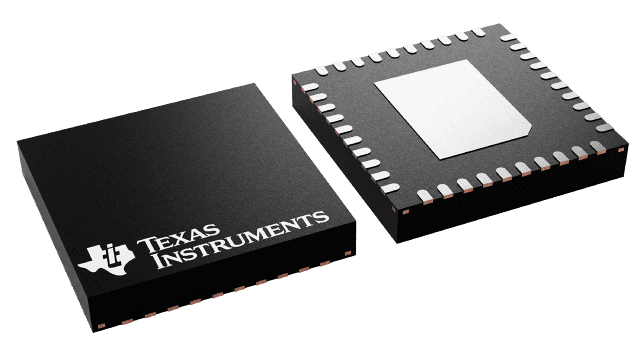

Package / Case VQFN-40
Series MSP430FR2353
Core MSP430
Data Bus Width 16 bit
Maximum Clock Frequency 24 MHz
Program Memory Size 16 kB
Data RAM Size 2 kB
ADC Resolution 12 bit
Number of I/Os 36 I/O
Operating Supply Voltage 1.8 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Packaging Reel
Product MCU
Program Memory Type FRAM
Brand Texas Instruments
Data RAM Type SRAM
Interface Type I2C, IrDA, SPI, UART
DAC Resolution 12 bit
Moisture Sensitive Yes
Number of ADC Channels 10 Channel
Number of Timers/Counters 4 Timer
Product Type 16-bit Microcontrollers - MCU
Factory Pack Quantity 2500
Subcategory Microcontrollers - MCU
Supply Voltage - Max 3.6 V
Supply Voltage - Min 1.8 V
Watchdog Timers Watchdog Timer, Extended

For more information, please refer to datasheet

Documents

MSP430FR2353TRHAR Datasheet

More Information

MSP430FR215x and MSP430FR235x microcontrollers (MCUs) are part of the MSP430™ MCU value line portfolio of ultra-low-power low-cost devices for sensing and measurement applications. MSP430FR235x MCUs integrate four configurable signal-chain modules called smart analog combos, each of which can be used as a 12-bit DAC or a configurable programmable-gain Op-Amp to meet the specific needs of a system while reducing the BOM and PCB size. The device also includes a 12-bit SAR ADC and two comparators. The MSP430FR215x and MSP430FR235x MCUs all support an extended temperature range from –40° up to 105°C, so higher temperature industrial applications can benefit from the devices’ FRAM data-logging capabilities. The extended temperature range allows developers to meet requirements of applications such as smoke detectors, sensor transmitters, and circuit breakers.
