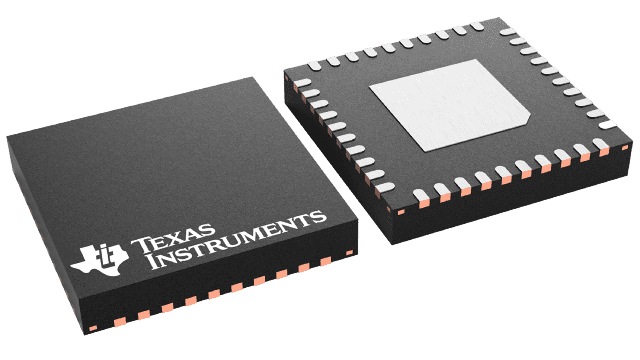

MSP430FR2476TRHAR Texas Instruments - Yeehing Electronics
16 MHz MCU with 64KB FRAM, 8KB SRAM, comparator, 12-bit ADC, UART/SPI/I2C, timer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.127 |
| 100 — 249 | 1.864 |
| 250 — 999 | 1.307 |
| 1,000 + | 0.62 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 16-bit Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-40 |
| Series | MSP430FR2475 |
| Core | MSP430 |
| Data Bus Width | 16 bit |
| Maximum Clock Frequency | 16 MHz |
| Program Memory Size | 64.5 kB |
| Data RAM Size | 8 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 35 I/O |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Product | MCU |
| Program Memory Type | FRAM |
| Brand | Texas Instruments |
| Data RAM Type | SRAM |
| Interface Type | I2C, IrDA, SPI, UART |
| DAC Resolution | 6 bit |
| Development Kit | LP-MSP430FR2476, MSP-TS430PT48A, |
| Number of ADC Channels | 10 Channel |
| Number of Timers/Counters | 5 x 16 bit |
| Processor Series | MSP430FR247 |
| Product Type | 16-bit Microcontrollers - MCU |
| Factory Pack Quantity | 2500 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.8 V |
| Watchdog Timers | Watchdog Timer |
For more information, please refer to datasheet
Documents
| MSP430FR2476TRHAR Datasheet |
More Information
MSP430FR247x microcontrollers (MCUs) are part of the MSP430™ MCU value line portfolio of ultra-low-power low-cost devices for sensing and measurement applications. MSP430FR247x MCUs integrate a 12-bit SAR ADC and one comparator. The MSP430FR247x MCUs support an extended temperature range from –40°C up to 105°C, so higher temperature industrial applications can benefit from the devices FRAM data-logging capabilities.
