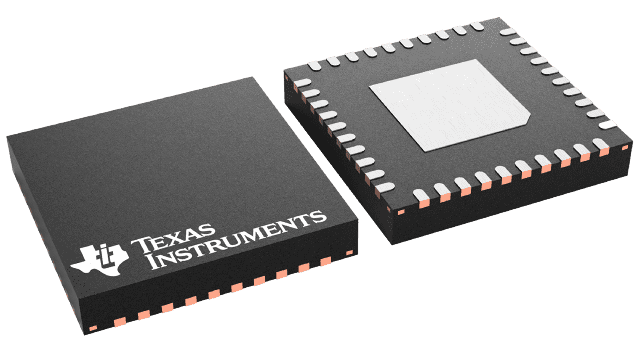

MSP430FR2476TRHAT Texas Instruments - Yeehing Electronics

16 MHz MCU with 64KB FRAM, 8KB SRAM, comparator, 12-bit ADC, UART/SPI/I2C, timer

Pricing (USD)

Quantity	Unit Price
1 — 99	2.549
100 — 249	2.234
250 — 999	1.566
1,000 +	0.88

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-40
Series	MSP430FR2475
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	64.5 kB
Data RAM Size	8 kB
ADC Resolution	12 bit
Number of I/Os	35 I/O
Operating Supply Voltage	1.8 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Reel
Product	MCU
Program Memory Type	FRAM
Brand	Texas Instruments
Data RAM Type	SRAM
Interface Type	I2C, IrDA, SPI, UART
DAC Resolution	6 bit
Development Kit	LP-MSP430FR2476, MSP-TS430PT48A,
Number of ADC Channels	10 Channel
Number of Timers/Counters	5 x 16 bit
Processor Series	MSP430FR247
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	250
Subcategory	Microcontrollers - MCU
Supply Voltage - Max	3.6 V
Supply Voltage - Min	1.8 V
Watchdog Timers	Watchdog Timer

For more information, please refer to datasheet

Documents

MSP430FR2476TRHAT Datasheet

More Information

MSP430FR247x microcontrollers (MCUs) are part of the MSP430™ MCU value line portfolio of ultra-low-power low-cost devices for sensing and measurement applications. MSP430FR247x MCUs integrate a 12-bit SAR ADC and one comparator. The MSP430FR247x MCUs support an extended temperature range from –40°C up to 105°C, so higher temperature industrial applications can benefit from the devices’ FRAM data-logging capabilities.
