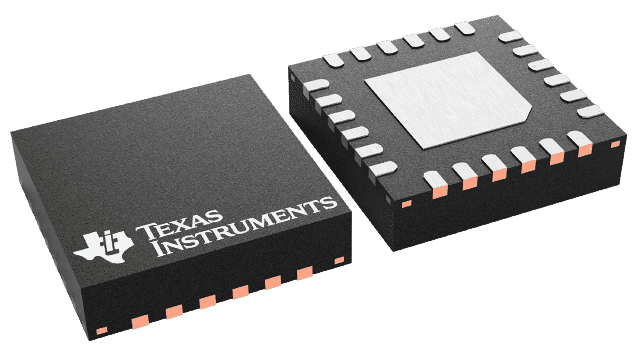

MSP430FR5720IRGER Texas Instruments - Yeehing Electronics
8 MHz MCU with 4KB FRAM, 1KB SRAM, 10-bit ADC, comparator, UART/SPI/I2C, timer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.963 |
| 100 — 249 | 1.72 |
| 250 — 999 | 1.206 |
| 1,000 + | 0.56 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 16-bit Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Series | MSP430FR5720 |
| Core | MSP430 |
| Data Bus Width | 16 bit |
| Maximum Clock Frequency | 8 MHz |
| Program Memory Size | 4 kB |
| Data RAM Size | 1 kB |
| ADC Resolution | 10 bit |
| Operating Supply Voltage | 2 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Interface Type | USCI |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 10 Channel |
| Number of Timers/Counters | 3 Timer |
| Processor Series | 5 Series |
| Product Type | 16-bit Microcontrollers - MCU |
| Factory Pack Quantity | 3000 |
| Subcategory | Microcontrollers - MCU |
| Tradename | MSP430 |
| Watchdog Timers | No Watchdog Timer |
| Part # Aliases | MSP430FR5739IRHAR |
| Unit Weight | 0.001601 oz |
For more information, please refer to datasheet
Documents
| MSP430FR5720IRGER Datasheet |
More Information
The TI MSP430FR572x family of ultra-low-power microcontrollers consists of multiple devices that feature embedded FRAM nonvolatile memory, ultra-low-power 16-bit MSP430™ CPU, and different peripherals targeted for various applications. The architecture, FRAM, and peripherals, combined with seven low-power modes, are optimized to achieve extended battery life in portable and wireless sensing applications. FRAM is a new nonvolatile memory that combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption. Peripherals include a 10-bit ADC, a 16-channel comparator with voltage reference generation and hysteresis capabilities, three enhanced serial channels capable of I2C, SPI, or UART protocols, an internal DMA, a hardware multiplier, an RTC, five 16-bit timers, and digital I/Os.
