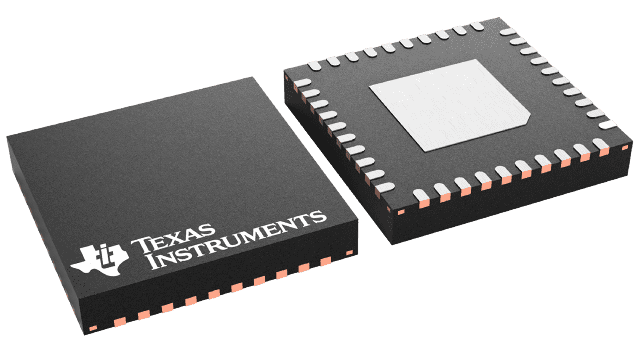

MSP430FR5729IRHAR


YeeHing #: Y010-MSP430FR5729IRHAR
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

MSP430FR5729IRHAR Texas Instruments - Yeehing Electronics

8 MHz MCU with 16KB FRAM, 1KB SRAM, 10-bit ADC, comparator, UART/SPI/I2C, timer

Pricing (USD)

Quantity Unit Price
1 — 99 2.593
100 — 249 2.114
250 — 999 1.661
1,000 + 2.54

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 16-bit Microcontrollers - MCU
RoHS Y
Mounting Style SMD/SMT
Package / Case VQFN-40
Series MSP430FR5729
Core MSP430
Data Bus Width 16 bit
Maximum Clock Frequency 8 MHz
Program Memory Size 16 kB
Data RAM Size 1 kB
ADC Resolution 10 bit
Operating Supply Voltage 2 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Brand Texas Instruments
Moisture Sensitive Yes
Number of ADC Channels 14 Channel
Number of Timers/Counters 5 Timer
Processor Series 5 Series
Product Type 16-bit Microcontrollers - MCU
Factory Pack Quantity 2500
Subcategory Microcontrollers - MCU
Tradename MSP430
Watchdog Timers No Watchdog Timer
Part # Aliases MSP430FR5739IRHAR
Unit Weight 0.003668 oz

For more information, please refer to datasheet

Documents

MSP430FR5729IRHAR Datasheet

More Information

The TI MSP430FR572x family of ultra-low-power microcontrollers consists of multiple devices that feature embedded FRAM nonvolatile memory, ultra-low-power 16-bit MSP430™ CPU, and different peripherals targeted for various applications. The architecture, FRAM, and peripherals, combined with seven low-power modes, are optimized to achieve extended battery life in portable and wireless sensing applications. FRAM is a new nonvolatile memory that combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption. Peripherals include a 10-bit ADC, a 16-channel comparator with voltage reference generation and hysteresis capabilities, three enhanced serial channels capable of I2C, SPI, or UART protocols, an internal DMA, a hardware multiplier, an RTC, five 16-bit timers, and digital I/Os.
