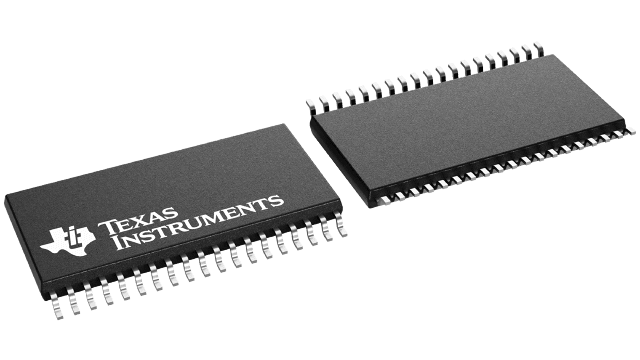

MSP430FR5739IDA Texas Instruments - Yeehing Electronics

24 MHz MCU with 16KB FRAM, 1KB SRAM, 10-bit ADC , comparator, UART/SPI/I2C, timer

Pricing (USD)

Quantity	Unit Price
1 — 99	3.1
100 — 249	2.528
250 — 999	1.987
1,000 +	1.35

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TSSOP-38
Series	MSP430FR5739
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	24 MHz
Program Memory Size	16 kB
Data RAM Size	1 kB
ADC Resolution	10 bit
Number of I/Os	30 I/O
Operating Supply Voltage	2 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	1.15 mm
Length	12.5 mm
Program Memory Type	FRAM
Width	6.2 mm
Brand	Texas Instruments
Interface Type	I2C, SPI, UART
Moisture Sensitive	Yes
Number of ADC Channels	14 Channel
Number of Timers/Counters	5 Timer
Processor Series	5 Series
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2000
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.007189 oz

For more information, please refer to datasheet

Documents

MSP430FR5739IDA Datasheet

More Information

The TI MSP430FR573x family of ultra-low-power microcontrollers consists of multiple devices that feature embedded FRAM nonvolatile memory, ultra-low-power 16-bit MSP430™ CPU, and different peripherals targeted for various applications. The architecture, FRAM, and peripherals, combined with seven low-power modes, are optimized to achieve extended battery life in portable and wireless sensing applications. FRAM is a new nonvolatile memory that combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption. Peripherals include a 10-bit ADC, a 16-channel comparator with voltage reference generation and hysteresis capabilities, three enhanced serial channels capable of I2C, SPI, or UART protocols, an internal DMA, a hardware multiplier, an RTC, five 16-bit timers, and digital I/Os.
