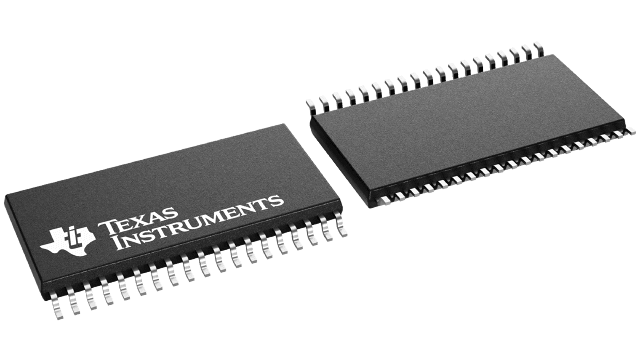

MSP430FR5848IDA


YeeHing #: Y010-MSP430FR5848IDA
Inventory: 3000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

MSP430FR5848IDA Texas Instruments - Yeehing Electronics

16 MHz MCU with 48KB FRAM, 2KB SRAM, 12-bit ADC , comparator, DMA, UART/SPI/I2C, timer

Pricing (USD)

Quantity Unit Price
1 — 99 4.081
100 — 249 3.327
250 — 999 2.615
1,000 + 1.55

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category 16-bit Microcontrollers - MCU
RoHS Y
Mounting Style SMD/SMT
Package / Case TSSOP-38
Series MSP430FR5848
Core MSP430
Data Bus Width 16 bit
Maximum Clock Frequency 16 MHz
Program Memory Size 48 kB
Data RAM Size 2 kB
ADC Resolution 12 bit
Number of I/Os 33 I/O
Operating Supply Voltage 1.8 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Tube
Product MCU
Program Memory Type FRAM
Brand Texas Instruments
Data RAM Type RAM
Interface Type I2C, SPI, UART
Analog Supply Voltage 3.6 V
Moisture Sensitive Yes
Number of ADC Channels 14 Channel
Number of Timers/Counters 5 x 16 bit
Product Type 16-bit Microcontrollers - MCU
Factory Pack Quantity 40
Subcategory Microcontrollers - MCU
Supply Voltage - Max 3.6 V
Supply Voltage - Min 1.8 V
Tradename MSP430
Watchdog Timers No Watchdog Timer
Part # Aliases MSP430FR5949IDAR
Unit Weight 0.007189 oz

For more information, please refer to datasheet

Documents

MSP430FR5848IDA Datasheet

More Information

The MSP430™ ultra-low-power (ULP) FRAM platform combines uniquely embedded FRAM and a holistic ultra-low-power system architecture, allowing innovators to increase performance at lowered energy budgets. FRAM technology combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash at much lower power.
