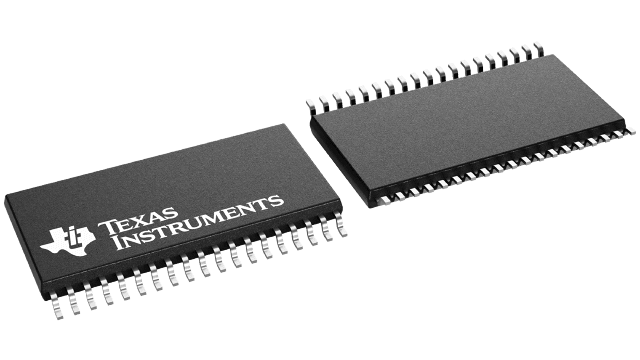

MSP430FR5957IDA Texas Instruments - Yeehing Electronics
16 MHz MCU with 32KB FRAM, 1KB SRAM, AES, 12-bit ADC, comparator, DMA, UART/SPI/I2C, timer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.338 |
| 100 — 249 | 2.721 |
| 250 — 999 | 2.139 |
| 1,000 + | 1.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 16-bit Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-38 |
| Series | MSP430FR5957 |
| Core | MSP430 |
| Data Bus Width | 16 bit |
| Maximum Clock Frequency | 16 MHz |
| Program Memory Size | 32 kB |
| Data RAM Size | 1 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 33 I/O |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Product | MCU |
| Program Memory Type | FRAM |
| Brand | Texas Instruments |
| Data RAM Type | RAM |
| Interface Type | I2C, SPI, UART |
| Analog Supply Voltage | 3.6 V |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 14 Channel |
| Number of Timers/Counters | 5 x 16 bit |
| Product Type | 16-bit Microcontrollers - MCU |
| Factory Pack Quantity | 40 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.8 V |
| Tradename | MSP430 |
| Watchdog Timers | No Watchdog Timer |
| Part # Aliases | MSP430FR5959IDAR |
| Unit Weight | 0.007189 oz |
For more information, please refer to datasheet
Documents
| MSP430FR5957IDA Datasheet |
More Information
The MSP430™ ultra-low-power (ULP) FRAM platform combines uniquely embedded FRAM and a holistic ultra-low-power system architecture, allowing innovators to increase performance at lowered energy budgets. FRAM technology combines the speed, flexibility, and endurance of SRAM with the stability and reliability of flash at much lower power.
