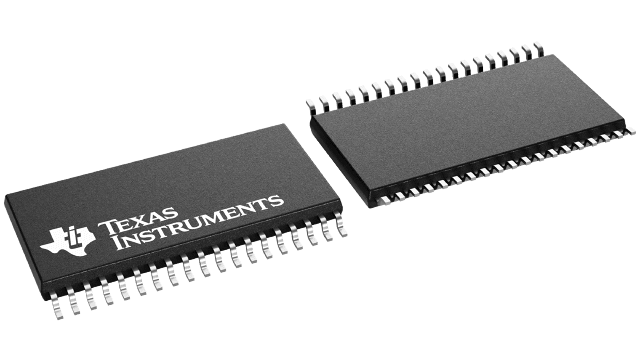

MSP430G2544IDA38 Texas Instruments - Yeehing Electronics

16 MHz MCU with 16KB Flash, 512B SRAM, 10-bit ADC, UART/SPI/I2C, timer

Pricing (USD)

Quantity	Unit Price
1 — 99	2.735
100 — 249	2.397
250 — 999	1.68
1,000 +	0.95

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
Mounting Style	SMD/SMT
Package / Case	TSSOP-38
Series	MSP430G2544
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	16 kB
Data RAM Size	512 B
ADC Resolution	10 bit
Number of I/Os	32 I/O
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Number of ADC Channels	12 Channel
Number of Timers/Counters	2 Timer
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	2000
Subcategory	Microcontrollers - MCU
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.007189 oz

For more information, please refer to datasheet

Documents

MSP430G2544IDA38 Datasheet

More Information

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 1 µs.
