Texas Instruments

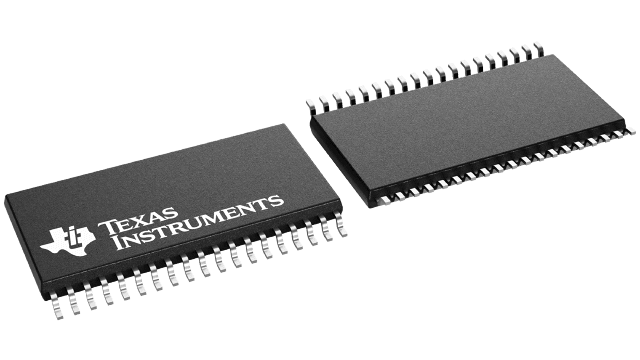

MSP430G2744IDA38R
MSP430G2744IDA38R
Regular price
$0.84 USD
Regular price
Sale price
$0.84 USD
Unit price
per
Couldn't load pickup availability
MSP430G2744IDA38R Texas Instruments - Yeehing Electronics
16 MHz MCU with 32KB Flash, 1KB SRAM, 10-bit ADC, UART/SPI/I2C, timer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.121 |
| 100 — 249 | 1.859 |
| 250 — 999 | 1.303 |
| 1,000 + | 0.84 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | 16-bit Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-38 |
| Series | MSP430G2744 |
| Core | MSP430 |
| Data Bus Width | 16 bit |
| Maximum Clock Frequency | 16 MHz |
| Program Memory Size | 32 kB |
| Data RAM Size | 1 kB |
| ADC Resolution | 10 bit |
| Number of I/Os | 32 I/O |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Data RAM Type | RAM |
| Interface Type | USCI |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 12 Channel |
| Number of Timers/Counters | 2 Timer |
| Processor Series | MSP430 |
| Product Type | 16-bit Microcontrollers - MCU |
| Factory Pack Quantity | 2000 |
| Subcategory | Microcontrollers - MCU |
| Tradename | MSP430 |
| Watchdog Timers | No Watchdog Timer |
| Unit Weight | 0.007189 oz |
For more information, please refer to datasheet
Documents
| MSP430G2744IDA38R Datasheet |
More Information
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 1 µs.
