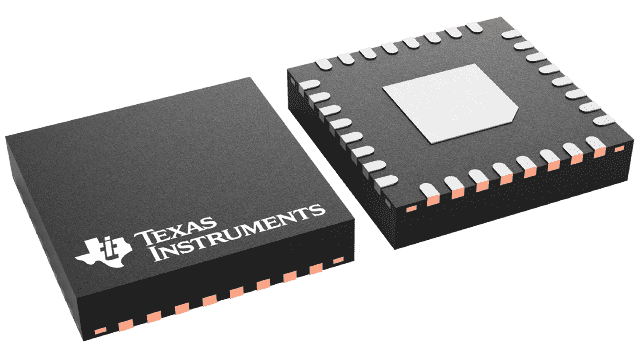

MSP430I2021TRHBR Texas Instruments - Yeehing Electronics

16-MHz metering AFE with 2 24-bit sigma-delta ADCs, 2 16-bit timers, 32KB Flash, 2KB RAM

Pricing (USD)

Quantity	Unit Price
1 — 99	2.23
100 — 249	1.954
250 — 999	1.37
1,000 +	6.86

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	16-bit Microcontrollers - MCU
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-32
Series	MSP430I2021
Core	MSP430
Data Bus Width	16 bit
Maximum Clock Frequency	16 MHz
Program Memory Size	32 kB
Data RAM Size	2 kB
ADC Resolution	24 bit
Number of I/Os	16 I/O
Operating Supply Voltage	2.2 V to 3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Reel
Product	MCU
Program Memory Type	Flash
Brand	Texas Instruments
Data RAM Type	SRAM
Interface Type	I2C, IrDA, SPI, UART
Moisture Sensitive	Yes
Number of ADC Channels	2 Channel
Number of Timers/Counters	2 x 16 bit
Processor Series	MSP430
Product Type	16-bit Microcontrollers - MCU
Factory Pack Quantity	3000
Subcategory	Microcontrollers - MCU
Supply Voltage - Max	3.6 V
Supply Voltage - Min	2.2 V
Tradename	MSP430
Watchdog Timers	No Watchdog Timer
Unit Weight	0.002547 oz

For more information, please refer to datasheet

Documents

MSP430I2021TRHBR Datasheet

More Information

The Texas Instruments MSP430i204x, MSP430I203x and MSP430I202x microcontrollers (MCUs) are part of the MSP430™ Metrology and Monitoring portfolio. The architecture and integrated peripherals, combined with five extensive low-power modes, are optimized to achieve extended battery life in portable and battery-powered measurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the devices to wake up from low-power modes to active mode in less than 5 µs.
