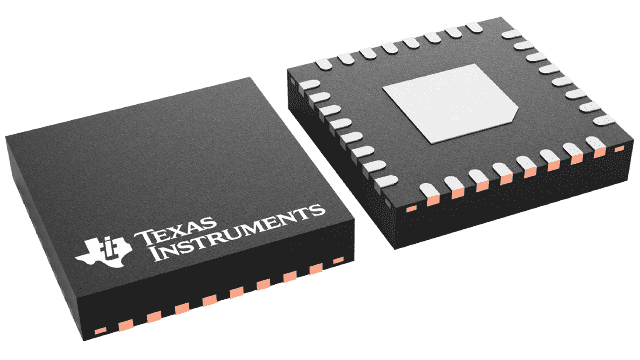

MSP430I2040TRHBT Texas Instruments - Yeehing Electronics
16-MHz metering AFE with 4 24-bit sigma-delta ADCs, 2 16-bit timers, 16KB Flash, 1KB RAM
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.937 |
100 — 249 | 2.574 |
250 — 999 | 1.804 |
1,000 + | 1.02 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | 16-bit Microcontrollers - MCU |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | VQFN-32 |
Series | MSP430I2040 |
Core | MSP430 |
Data Bus Width | 16 bit |
Maximum Clock Frequency | 16 MHz |
Program Memory Size | 16 kB |
Data RAM Size | 1 kB |
ADC Resolution | 24 bit |
Number of I/Os | 16 I/O |
Operating Supply Voltage | 2.2 V to 3.6 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 105 C |
Packaging | Reel |
Height | 1 mm |
Length | 5 mm |
Product | MCU |
Program Memory Type | Flash |
Width | 5 mm |
Brand | Texas Instruments |
Data RAM Type | SRAM |
Data ROM Size | - |
Data ROM Type | - |
Interface Type | I2C, IrDA, SPI, UART |
Analog Supply Voltage | 2.2 V to 3.6 V |
DAC Resolution | - |
Development Kit | MSP-FET430U32A, MSP-TS430RHB32A, MSP-EXP430G2, EVM430-I2040S |
I/O Voltage | - |
Moisture Sensitive | Yes |
Number of ADC Channels | 4 Channel |
Number of Timers/Counters | 2 Timer |
Processor Series | MSP |
Product Type | 16-bit Microcontrollers - MCU |
Factory Pack Quantity | 250 |
Subcategory | Microcontrollers - MCU |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 2.2 V |
Tradename | MSP430 |
Watchdog Timers | No Watchdog Timer |
Unit Weight | 0.002547 oz |
For more information, please refer to datasheet
Documents
MSP430I2040TRHBT Datasheet |
More Information
The Texas Instruments MSP430i204x, MSP430I203x and MSP430I202x microcontrollers (MCUs) are part of the MSP430™ Metrology and Monitoring portfolio. The architecture and integrated peripherals, combined with five extensive low-power modes, are optimized to achieve extended battery life in portable and battery-powered measurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the devices to wake up from low-power modes to active mode in less than 5 µs.
