Description
MSP432E401YTPDTR Texas Instruments - Yeehing Electronics

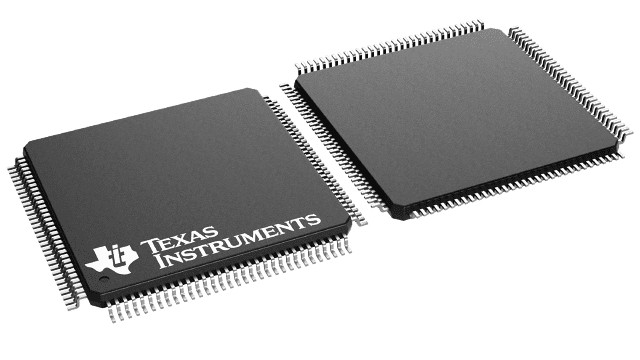

SimpleLink™ 32-bit Arm Cortex-M4F MCU with ethernet, CAN, 1MB Flash and 256kB RAM
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 13.911 |
| 100 — 249 | 12.151 |
| 250 — 999 | 9.369 |
| 1,000 + | 6.70 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | ARM Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-128 |
| Series | MSP432E401Y |
| Core | ARM Cortex M4F |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 120 MHz |
| Program Memory Size | 1 MB |
| Data RAM Size | 256 kB |
| ADC Resolution | 12 bit, 12 bit |
| Number of I/Os | 90 I/O |
| Operating Supply Voltage | 2.97 V to 3.63 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Product | MCU+FPU |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Data RAM Type | SRAM |
| Data ROM Size | 6 kB |
| Data ROM Type | EEPROM |
| Interface Type | CAN, Ethernet, I2C, QSSI, UART, USB |
| Analog Supply Voltage | 2.97 V to 3.63 V |
| Development Kit | MSP-EXP432E401Y |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 20 Channel |
| Number of Timers/Counters | 8 Timer |
| Processor Series | MSP432 |
| Product Type | ARM Microcontrollers - MCU |
| Factory Pack Quantity | 1000 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 3.63 V |
| Supply Voltage - Min | 2.97 V |
| Tradename | SimpleLink |
| Watchdog Timers | Watchdog Timer |
| Unit Weight | 0.020367 oz |
For more information, please refer to datasheet
Documents
| MSP432E401YTPDTR Datasheet |
More Information
The SimpleLink MSP432E401Y Arm® Cortex®-M4F microcontrollers provide top performance and advanced integration. The product family is positioned for cost-effective applications requiring significant control processing and connectivity capabilities.
