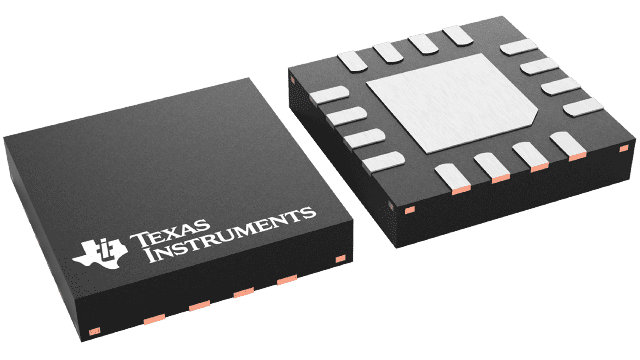

MUX36D04IRRJR Texas Instruments - Yeehing Electronics
1-pA on-state leakage current, 36-V, 4:1, 2-channel precision analog multiplexer
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.19 |
100 — 249 | 5.046 |
250 — 999 | 3.966 |
1,000 + | 2.35 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Multiplexer Switch ICs |
Number of Channels | 4 Channel |
Configuration | 2 x 4 |
On Resistance - Max | 250 Ohms |
On Time - Max | 149 ns |
Off Time - Max | 102 ns |
Operating Supply Voltage | 10 V to 36 V |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 150 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-16 |
Packaging | Reel |
Supply Type | Single Supply, Dual Supply |
Brand | Texas Instruments |
Supply Current - Max | 77 uA |
Dual Supply Voltage | +/- 5 V to +/- 18 V |
Maximum Dual Supply Voltage | +/- 18 V |
Minimum Dual Supply Voltage | +/- 5 V |
Product Type | Multiplexer Switch ICs |
Factory Pack Quantity | 3000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 36 V |
Supply Voltage - Min | 10 V |
Switch Voltage - Max | 36 V |
For more information, please refer to datasheet
Documents
MUX36D04IRRJR Datasheet |
More Information
The MUX36S08 and MUX36D04 (MUX36xxx) are modern complementary metal-oxide semiconductor (CMOS) analog multiplexers (muxes). The MUX36S08 offers 8:1 single-ended channels, whereas the MUX36D04 offers differential 4:1 or dual 4:1 single-ended channels. The MUX36S08 and MUX36D04 work equally well with either dual supplies (±5 V to ±18 V) or a single supply (10 V to 36 V). They also perform well with symmetric supplies (such as VDD = 12 V, VSS = –12 V), and unsymmetric supplies (such as VDD = 12 V,
