Texas Instruments

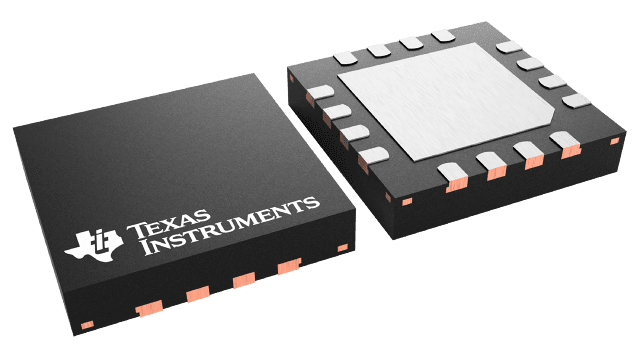

MUX36S08IRUMR

MUX36S08IRUMR

$2.05 USD
$2.05 USD
Sale Sold out
YeeHing #
Inventory

MUX36S08IRUMR Texas Instruments - Yeehing Electronics

1-pA on-state leakage current, 36-V, 8:1, 1-channel precision analog multiplexer

Pricing (USD)

Quantity Unit Price
1 — 99 5.909
100 — 249 5.177
250 — 999 3.63
1,000 + 2.05

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Multiplexer Switch ICs
RoHS Y
Product Multiplexers
Number of Channels 8 Channel
Configuration 1 x 8
On Resistance - Max 430 Ohms
On Time - Max 149 ns
Off Time - Max 102 ns
Operating Supply Voltage 10 V to 36 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case WQFN-16
Packaging Reel
Series MUX36S08
Supply Type Dual Supply
Brand Texas Instruments
Off Isolation - Typ - 96 dB
Supply Current - Max 77 uA
Dual Supply Voltage +/- 5 V to +/- 18 V
Maximum Dual Supply Voltage +/- 18 V
Minimum Dual Supply Voltage +/- 5 V
Moisture Sensitive Yes
Product Type Multiplexer Switch ICs
Factory Pack Quantity 3000
Subcategory Switch ICs
Supply Voltage - Max 36 V
Supply Voltage - Min 10 V
Switch Voltage - Max 36 V

For more information, please refer to datasheet

Documents

MUX36S08IRUMR Datasheet

More Information

The MUX36S08 and MUX36D04 (MUX36xxx) are modern complementary metal-oxide semiconductor (CMOS) analog multiplexers (muxes). The MUX36S08 offers 8:1 single-ended channels, whereas the MUX36D04 offers differential 4:1 or dual 4:1 single-ended channels. The MUX36S08 and MUX36D04 work equally well with either dual supplies (±5 V to ±18 V) or a single supply (10 V to 36 V). They also perform well with symmetric supplies (such as VDD = 12 V, VSS = –12 V), and unsymmetric supplies (such as VDD = 12 V,
