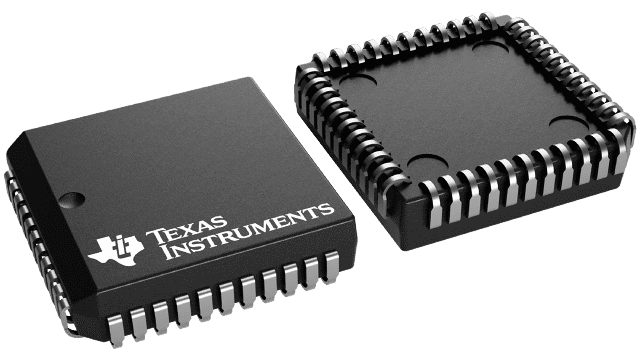

NS16C2552TVA/NOPB Texas Instruments - Yeehing Electronics
Dual UART with 16-byte FIFO and up to 5 Mbit/s Data Rate
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.649 |
| 100 — 249 | 7.866 |
| 250 — 999 | 6.183 |
| 1,000 + | 3.67 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | UART Interface IC |
| RoHS | Y |
| Number of Channels | 2 Channel |
| Data Rate | 5 Mb/s |
| Memory Size | 16 B |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.97 V |
| Operating Supply Current | 3 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | PLCC-44 |
| Packaging | Tube |
| Height | 4 mm |
| Length | 16.66 mm |
| Series | NS16C2552 |
| Type | UART |
| Width | 16.66 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | UART Interface IC |
| Factory Pack Quantity | 25 |
| Subcategory | Interface ICs |
| Unit Weight | 0.084185 oz |
For more information, please refer to datasheet
Documents
| NS16C2552TVA/NOPB Datasheet |
More Information
The NS16C2552 and NS16C2752 are dual channel Universal Asynchronous Receiver/Transmitter (DUART). The footprint and the functions are compatible to the PC16552D, while new features are added to the UART device. These features include low voltage support, 5V tolerant inputs, enhanced features, enhanced register set, and higher data rate.
