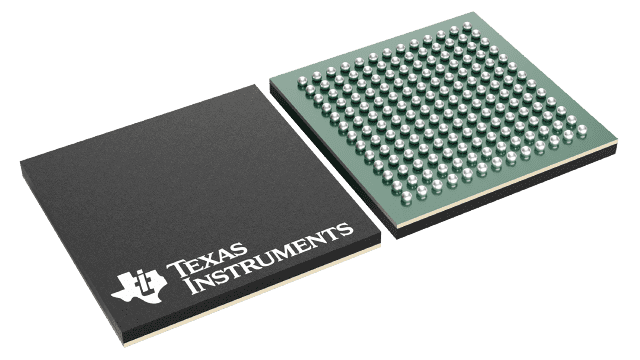

Automotive 3.135-V to 5.25-V, 7 buck & 6-LDO PMIC for ARM Cortex-A15 processors

Pricing (USD)

Quantity	Unit Price
1 — 99	12.213
100 — 249	10.668
250 — 999	8.225
1,000 +	5.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Power Management Specialized - PMIC
RoHS	Y
Output Voltage Range	0.7 V to 3.3 V
Output Current	6 A
Input Voltage Range	3.135 V to 5.25 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	NFBGA-169
Type	Automotive Power Management Unit
Packaging	Reel
Application	AM572x
Operating Temperature Range	- 40 C to + 85 C
Product	PMIC
Series	TPS659039-Q1
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3.8 V
Product Type	Power Management Specialized - PMIC
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

O9039A389IZWSRQ1 Datasheet

More Information

The TPS659038-Q1 and TPS659039-Q1 devices are integrated power-management integrated circuits (PMICs) for automotive applications. The device provides seven configurable step-down converters with up to 6 A of output current for memory, processor core, input-output (I/O), or preregulation of LDOs. One of these configurable step-down converters can be combined with another 3-A regulator to allow up to 9 A of output current. All of the step-down converters can synchronize to an external clock source between 1.7 Mhz and 2.7 MHz, or an internal fall back clock at 2.2 MHz. The TPS659038-Q1 device contains 11 LDO regulators while the TPS659039-Q1 device contains six LDO regulators for external use. These LDO regulators can be supplied from either a system supply or a preregulated supply. The power-up and power-down controller is configurable and supports any power-up and power-down sequences (OTP based). The TPS659038-Q1 and TPS659039-Q1 devices include a 32-kHz RC oscillator to sequence all resources during power up and power down. In cases where a fast start up is needed, a 16-MHz crystal oscillator is also included to quickly generate a stable 32-kHz for the system. All LDOs and SMPS converters can be controlled by the SPI or I2C interface, or by power request signals. In addition, voltage scaling registers allow transitioning the SMPS to different voltages by SPI, I2C, or roof and floor control. One dedicated pin in each package can be configured as part of the power-up sequence to control external resources. General-purpose input-output (GPIO) functionality is available and two GPIOs can be configured as part of the power-up sequence to control external resources. Power request signals enable power mode control for power optimization. The device includes a general-purpose (GP) sigma-delta analog-to-digital converter (ADC) with three external input channels. The TPS659038-Q1 and TPS659039-Q1 device is available in a 13-ball × 13-ball nFBGA package with a 0,8-mm pitch.
