Description

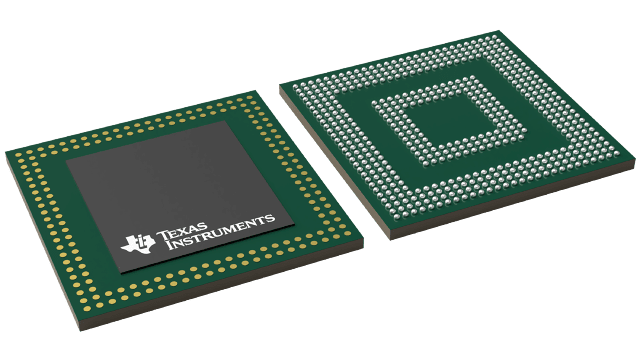

OMAP3515ECBBA Texas Instruments - Yeehing Electronics
Sitara Processor: Arm Cortex-A8, 3D Graphics, LPDDR
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 42.849 |
| 100 — 249 | 38.088 |
| 250 — 999 | 31.311 |
| 1,000 + | 19.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Processors - Application Specialized |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | FCBGA-515 |
| Series | OMAP3515 |
| Application | Audio Applications |
| Core | ARM Cortex A8 |
| Number of Cores | 1 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 600 MHz |
| L1 Cache Instruction Memory | 16 kB |
| L1 Cache Data Memory | 16 kB |
| Operating Supply Voltage | 985 mV to 1.35 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L1/L2 Cache, ROM, SRAM |
| Brand | Texas Instruments |
| Data RAM Size | 64 kB |
| Data ROM Size | 112 kB |
| Interface Type | 1-Wire, I2C, SPI, UART, USB |
| I/O Voltage | 1.8 V, 3 V |
| Instruction Type | Fixed/Floating Point |
| L2 Cache Instruction / Data Memory | 256 kB |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 12 x 32 bit |
| Processor Series | Sitara |
| Product Type | Processors - Application Specialized |
| Factory Pack Quantity | 168 |
| Subcategory | Processors - Application Specialized |
| Tradename | Sitara |
| Watchdog Timers | Watchdog Timer |
For more information, please refer to datasheet
Documents
| OMAP3515ECBBA Datasheet |
More Information
devices are based on the enhanced OMAP 3 architecture.
