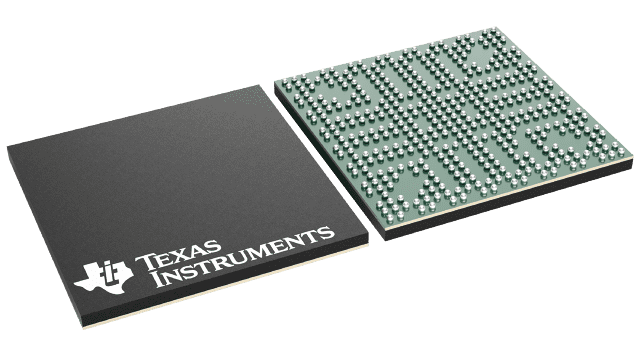

OMAP3530ECUS Texas Instruments - Yeehing Electronics
Applications Processor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 45.239 |
| 100 — 249 | 40.212 |
| 250 — 999 | 33.057 |
| 1,000 + | 20.70 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Processors - Application Specialized |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | PBGA-423 |
| Series | OMAP3530 |
| Application | Audio Applications |
| Core | ARM Cortex A8, TMS320C64x |
| Number of Cores | 2 Core |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 600 MHz, 430 MHz |
| L1 Cache Instruction Memory | 16 kB, 32 kB |
| L1 Cache Data Memory | 16 kB, 80 kB |
| Operating Supply Voltage | 985 mV to 1.35 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Tray |
| Memory Type | L1/L2 Cache, ROM, SRAM |
| Brand | Texas Instruments |
| Data RAM Size | 64 kB |
| Data ROM Size | 112 kB, 16 kB |
| Interface Type | 1-Wire, I2C, Serial, UART, USB |
| Number of I/Os | 170 I/O |
| I/O Voltage | 1.8 V |
| L2 Cache Instruction / Data Memory | 256 kB, 96 kB |
| Moisture Sensitive | Yes |
| Number of Timers/Counters | 12 x 32 bit |
| Processor Series | OMAP |
| Product Type | Processors - Application Specialized |
| Factory Pack Quantity | 90 |
| Subcategory | Processors - Application Specialized |
| Tradename | OMAP Application Processor |
| Watchdog Timers | Watchdog Timer |
For more information, please refer to datasheet
Documents
| OMAP3530ECUS Datasheet |
More Information
OMAP3530 and OMAP3525 devices are based on the enhanced OMAP 3 architecture.
