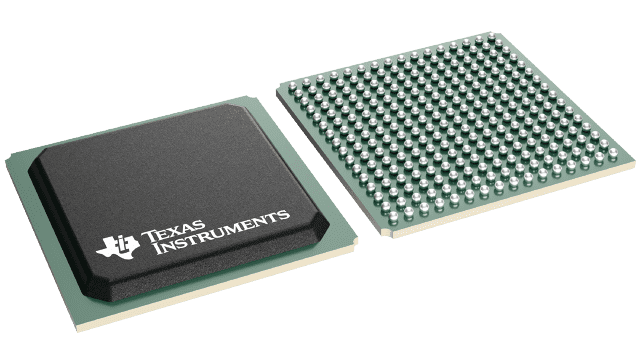

OMAPL137DZKB3 Texas Instruments - Yeehing Electronics
Low power C674x floating-point DSP + Arm9 processor - up to 456 MHz
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 18.406 |
| 100 — 249 | 16.078 |
| 250 — 999 | 12.396 |
| 1,000 + | 7.76 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital Signal Processors & Controllers - DSP, DSC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | BGA-256 |
| Series | OMAP-L137 |
| Product | DSPs |
| Core | TMS320C674x, ARM926EJ-S |
| Maximum Clock Frequency | 375 MHz, 375 MHz |
| L1 Cache Instruction Memory | 32 kB, 16 kB |
| L1 Cache Data Memory | 32 kB, 16 kB |
| Program Memory Size | 32 kB |
| Data RAM Size | 8 kB |
| Operating Supply Voltage | 1.14 V to 1.32 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Program Memory Type | Cache |
| Brand | Texas Instruments |
| Interface Type | SPI, USB |
| Data Bus Width | 16 bit |
| Development Kit | TMDSOSKL137 |
| Instruction Type | Fixed/Floating Point |
| L2 Cache Instruction / Data Memory | 256 kB |
| Moisture Sensitive | Yes |
| Number of Cores | 2 Core |
| Number of Timers/Counters | 1 Timer |
| Product Type | DSP - Digital Signal Processors & Controllers |
| Factory Pack Quantity | 90 |
| Subcategory | Embedded Processors & Controllers |
| Supply Voltage - Min | 1.14 V |
| Tradename | OMAP Application Processor |
| Unit Weight | 0.098203 oz |
For more information, please refer to datasheet
Documents
| OMAPL137DZKB3 Datasheet |
More Information
The OMAP-L137 device is a low-power applications processor based on an ARM926EJ-S and a TMS320C674x DSP core. It consumes significantly lower power than other members of the TMS320C6000 platform of DSPs.
