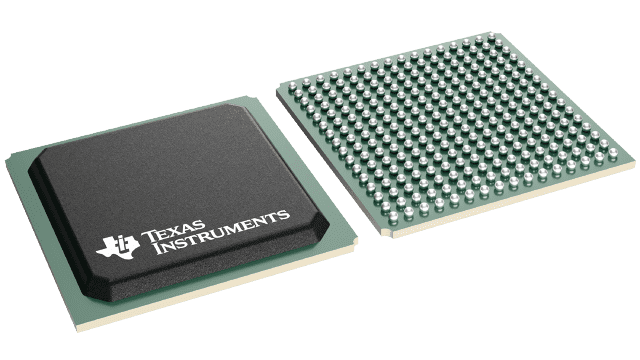

OMAPL137DZKB4 Texas Instruments - Yeehing Electronics

Low power C674x floating-point DSP + Arm9 processor - up to 456 MHz

Pricing (USD)

Quantity	Unit Price
1 — 99	20.358
100 — 249	18.096
250 — 999	14.876
1,000 +	9.31

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	BGA-256
Series	OMAP-L137
Product	DSPs
Core	TMS320C674x, ARM926EJ-S
Maximum Clock Frequency	456 MHz, 456 MHz
L1 Cache Instruction Memory	32 kB, 16 kB
L1 Cache Data Memory	32 kB, 16 kB
Program Memory Size	32 kB
Data RAM Size	8 kB
Operating Supply Voltage	1.14 V to 1.32 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Program Memory Type	Cache
Brand	Texas Instruments
Interface Type	SPI, USB
Data Bus Width	16 bit
Development Kit	TMDSOSKL137
Instruction Type	Fixed/Floating Point
L2 Cache Instruction / Data Memory	256 kB
Moisture Sensitive	Yes
Number of Cores	2 Core
Number of Timers/Counters	1 Timer
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Supply Voltage - Min	1.14 V
Tradename	OMAP Application Processor
Unit Weight	0.098203 oz

For more information, please refer to datasheet

Documents

OMAPL137DZKB4 Datasheet

More Information

The OMAP-L137 device is a low-power applications processor based on an ARM926EJ-S and a TMS320C674x DSP core. It consumes significantly lower power than other members of the TMS320C6000 platform of DSPs.
