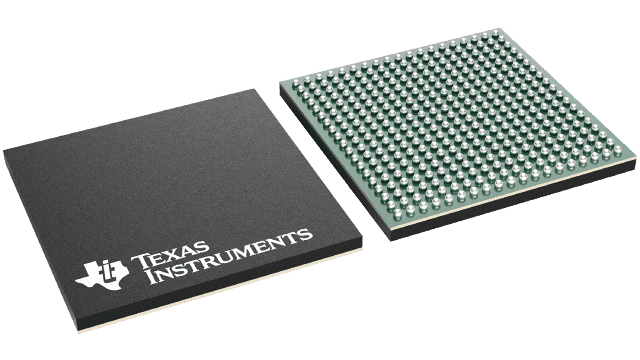

OMAPL138EZWTA3 Texas Instruments - Yeehing Electronics

Low power C674x floating-point DSP + Arm9 processor - up to 456MHz

Pricing (USD)

Quantity	Unit Price
1 — 99	25.286
100 — 249	22.477
250 — 999	18.477
1,000 +	9.53

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital Signal Processors & Controllers - DSP, DSC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	PBGA-361
Series	OMAP-L138
Product	DSPs
Core	TMS320C674x, ARM926EJ-S
Maximum Clock Frequency	375 MHz, 375 MHz
L1 Cache Instruction Memory	32 kB, 16 kB
L1 Cache Data Memory	32 kB, 16 kB
Data RAM Size	8 kB
Operating Supply Voltage	1.2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Tray
Height	0.94 mm
Length	13 mm
Width	13 mm
Brand	Texas Instruments
Data ROM Size	64 kB
Interface Type	I2C, Parallel, SPI, USB
Data Bus Width	16 bit, 32 bit
I/O Voltage	1.8 V, 3.3 V
Instruction Type	Fixed/Floating Point
L2 Cache Instruction / Data Memory	256 kB
MFLOPS	2746 MFLOPS
Moisture Sensitive	Yes
Number of Cores	2 Core
Number of Timers/Counters	3 Timer
Processor Series	OMAP
Product Type	DSP - Digital Signal Processors & Controllers
Factory Pack Quantity	90
Subcategory	Embedded Processors & Controllers
Supply Voltage - Max	1.32 V
Supply Voltage - Min	1.14 V
Tradename	OMAP
Watchdog Timers	Watchdog Timer
Unit Weight	0.027845 oz

For more information, please refer to datasheet

Documents

OMAPL138EZWTA3 Datasheet

More Information

The OMAP-L138 C6000 DSP+ARM processor is a low-power applications processor based on an ARM926EJ-S and a C674x DSP core. This processor provides significantly lower power than other members of the TMS320C6000™ platform of DSPs.
