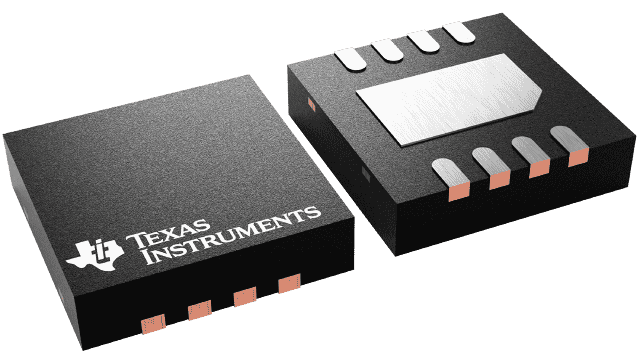

OPA1612AID Texas Instruments - Yeehing Electronics
SoundPlus™ Audio Operational Amplifier with 1.1nV/√Hz Noise, Low THD and Precision
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.877 |
| 100 — 249 | 4.791 |
| 250 — 999 | 3.766 |
| 1,000 + | 2.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | OPA1612 |
| Product | Audio Amplifiers |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Audio |
| Package / Case | SOIC-8 |
| THD plus Noise | 0.000015 % |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 2.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Burr-Brown Audio, Premium Sound, Small Size |
| Output Type | Rail-to-Rail |
| Brand | Texas Instruments |
| Gain | 130 dB |
| Number of Channels | 2 Channel |
| CMRR - Common Mode Rejection Ratio | 110 dB to 120 dB |
| en - Input Voltage Noise Density | 1.1 nV/sqrt Hz |
| Ib - Input Bias Current | 250 nA |
| Moisture Sensitive | Yes |
| Operating Supply Current | 3.6 mA |
| Operating Supply Voltage | +/- 2.25 V to +/- 18 V |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 140 dB |
| SR - Slew Rate | 27 V/us |
| Factory Pack Quantity | 2500 |
| Subcategory | Audio ICs |
| Vos - Input Offset Voltage | 0.5 mV |
| Unit Weight | 0.002677 oz |
For more information, please refer to datasheet
Documents
| OPA1612AID Datasheet |
More Information
The OPA1611 (single) and OPA1612 (dual) bipolar-input operational amplifiers achieve very low 1.1-nV/√Hz noise density with an ultralow distortion of 0.000015% at 1 kHz. The OPA1611 and OPA1612 offer rail-to-rail output swing to within 600 mV with a 2-kΩ load, which increases headroom and maximizes dynamic range. These devices also have a high output drive capability of ±30 mA.
