OPA1612AIDRGT Texas Instruments - Yeehing Electronics
SoundPlus™ Audio Operational Amplifier with 1.1nV/√Hz Noise, Low THD and Precision
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.877 |
100 — 249 | 4.791 |
250 — 999 | 3.766 |
1,000 + | 2.24 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | OPA1612 |
Product | Audio Amplifiers |
Output Power | - |
Mounting Style | SMD/SMT |
Type | 2-Channel Audio |

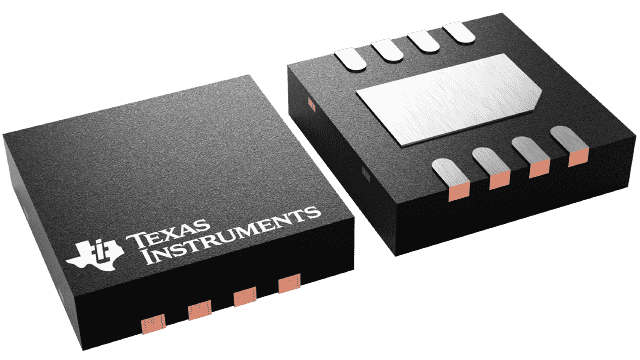

Package / Case | SON-8 |
THD plus Noise | 0.000015 % |
Supply Voltage - Max | 36 V |
Supply Voltage - Min | 4.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Features | Burr-Brown Audio, Premium Sound, Small Size |
Height | 0.8 mm |
Input Type | Bipolar |
Length | 3.1 mm |
Output Current | 30 mA |
Output Type | Rail-to-Rail |
Supply Type | Dual |
Width | 3.1 mm |
Brand | Texas Instruments |
Number of Channels | 2 Channel |
CMRR - Common Mode Rejection Ratio | 110 dB to 120 dB |
Dual Supply Voltage | +/- 2.25 V to +/- 18 V |
en - Input Voltage Noise Density | 1.1 nV/sqrt Hz |
GBP - Gain Bandwidth Product | 80 MHz |
Ib - Input Bias Current | 250 nA |
Moisture Sensitive | Yes |
Operating Supply Current | 3.6 mA |
Operating Supply Voltage | 4.5 V to 36 V, +/- 2.25 V to +/- 18 V |
Output Signal Type | Rail to Rail |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 0.1 uV/V |
SR - Slew Rate | 27 V/us |
Factory Pack Quantity | 250 |
Subcategory | Audio ICs |
Vos - Input Offset Voltage | 0.5 mV |
Unit Weight | 0.002677 oz |
For more information, please refer to datasheet
Documents
OPA1612AIDRGT Datasheet |
More Information
The OPA1611 (single) and OPA1612 (dual) bipolar-input operational amplifiers achieve very low 1.1-nV/√Hz noise density with an ultralow distortion of 0.000015% at 1 kHz. The OPA1611 and OPA1612 offer rail-to-rail output swing to within 600 mV with a 2-kΩ load, which increases headroom and maximizes dynamic range. These devices also have a high output drive capability of ±30 mA.
