Texas Instruments
OPA1652AIDRGT
OPA1652AIDRGT
Regular price
$0.51 USD
Regular price
Sale price
$0.51 USD
Unit price
per
Couldn't load pickup availability

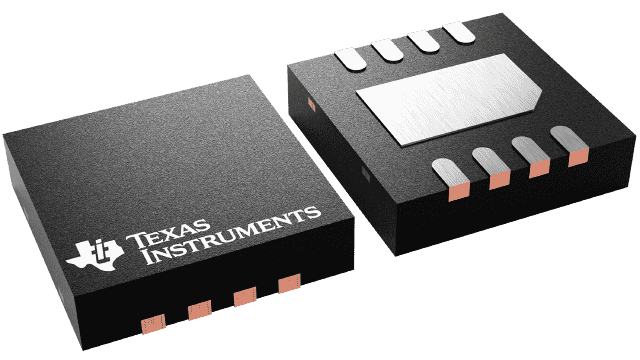

OPA1652AIDRGT Texas Instruments - Yeehing Electronics
Dual SoundPlus™ low-noise & distortion, general-purpose, FET-input audio op amp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.973 |
| 100 — 249 | 1.63 |
| 250 — 999 | 1.171 |
| 1,000 + | 0.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | OPA1652 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | - |
| Mounting Style | SMD/SMT |
| Type | Audio Operational Amplifier |
| Package / Case | SON-8 |
| Audio - Load Impedance | 2 kOhms |
| THD plus Noise | 0.00005 % |
| Supply Voltage - Max | 36 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Burr-Brown Audio, Small Size |
| Output Current | 50 mA |
| Output Type | Rail-to-Rail |
| Supply Type | Single, Dual |
| Brand | Texas Instruments |
| Gain | 114 dB |
| Number of Channels | 2 Channel |
| Shutdown | No Shutdown |
| CMRR - Common Mode Rejection Ratio | 100 dB to 110 dB |
| en - Input Voltage Noise Density | 3.8 nV/sqrt Hz |
| GBP - Gain Bandwidth Product | 18 MHz |
| Ib - Input Bias Current | 100 pA |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2 mA |
| Product Type | Audio Amplifiers |
| SR - Slew Rate | 10 V/us |
| Factory Pack Quantity | 250 |
| Subcategory | Audio ICs |
| Vos - Input Offset Voltage | 1.5 mV |
| Unit Weight | 0.000635 oz |
For more information, please refer to datasheet
Documents
| OPA1652AIDRGT Datasheet |
More Information
The OPA1652 (dual) and OPA1654 (quad) FET-input operational amplifiers achieve a low 4.5-nV/√Hz noise density with an ultra-low distortion of 0.00005% at 1 kHz. The OPA1652 and OPA1654 op amps offer rail-to-rail output swing to within 800 mV with a 2-kΩ load, which increases headroom and maximizes dynamic range. These devices also have a high output drive capability of ±30 mA.
