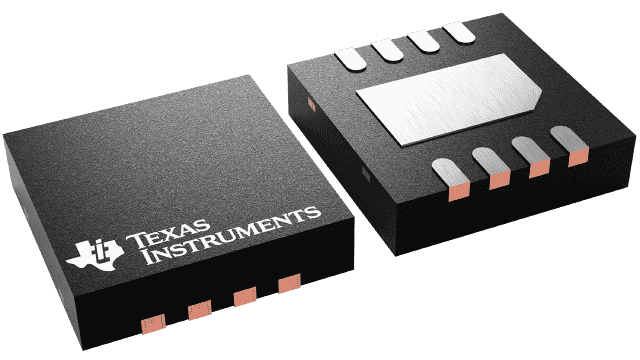

OPA1688IDRGR Texas Instruments - Yeehing Electronics
36V, 10MHz, Low Distortion High Drive Rail-to-Rail Output Audio Operational Amplifiers
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.186 |
100 — 249 | 0.912 |
250 — 999 | 0.672 |
1,000 + | 0.34 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | SON-8 |
Supply Voltage - Max | 36 V |
Number of Channels | 2 Channel |
GBP - Gain Bandwidth Product | 10 MHz |
SR - Slew Rate | 8 V/us |
CMRR - Common Mode Rejection Ratio | 104 dB to 120 dB |
Ib - Input Bias Current | 20 pA |
Vos - Input Offset Voltage | 1.5 mV |
Supply Voltage - Min | 4.5 V |
Operating Supply Current | 1.6 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Shutdown | No Shutdown |
Series | OPA1688 |
Packaging | Reel |
Amplifier Type | General Purpose Amplifier |
Features | Burr-Brown Audio, EMI Hardened, High Cload Drive, Small Size |
Input Type | Rail-to-Rail |
Output Type | Rail-to-Rail |
Product | Operational Amplifiers |
Brand | Texas Instruments |
THD plus Noise | 0.000616 % |
en - Input Voltage Noise Density | 14 nV/sqrt Hz |
In - Input Noise Current Density | 1.8 fA/sqrt Hz |
Ios - Input Offset Current | 3 pA |
Moisture Sensitive | Yes |
Product Type | Op Amps - Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 1 uV/V |
Factory Pack Quantity | 3000 |
Subcategory | Amplifier ICs |
Vcm - Common Mode Voltage | 4.4 V to 34 V |
Unit Weight | 0.002677 oz |
For more information, please refer to datasheet
Documents
OPA1688IDRGR Datasheet |
More Information
The OPA1688 36-V, single-supply, low-noise SoundPlus™ audio operational amplifier is capable of operating on supplies ranging from 4.5 V (±2.25 V) to 36 V (±18 V). This latest addition of a high-voltage audio operational amplifier in conjunction with the OPA16xx devices provide a family of bandwidth, noise, and power options to meet the needs of a wide variety of applications. The OPA1688 is available in a WSON micropackage, and offers low offset, drift, and quiescent current. This device also offers wide bandwidth, fast slew rate, and high output current drive capability.
