Texas Instruments

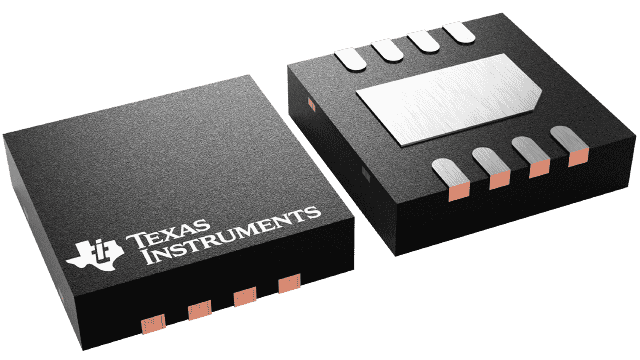

OPA1688IDRGT
OPA1688IDRGT
Regular price
$0.49 USD
Regular price
Sale price
$0.49 USD
Unit price
per
Couldn't load pickup availability
OPA1688IDRGT Texas Instruments - Yeehing Electronics
36V, 10MHz, Low Distortion High Drive Rail-to-Rail Output Audio Operational Amplifiers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.561 |
| 100 — 249 | 1.289 |
| 250 — 999 | 0.926 |
| 1,000 + | 0.49 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SON-8 |
| Supply Voltage - Max | 36 V |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 10 MHz |
| SR - Slew Rate | 8 V/us |
| CMRR - Common Mode Rejection Ratio | 104 dB to 120 dB |
| Ib - Input Bias Current | 20 pA |
| Vos - Input Offset Voltage | 1.5 mV |
| Supply Voltage - Min | 4.5 V |
| Operating Supply Current | 1.6 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Shutdown | No Shutdown |
| Series | OPA1688 |
| Packaging | Bulk |
| Amplifier Type | General Purpose Amplifier |
| Features | Burr-Brown Audio, EMI Hardened, High Cload Drive, Small Size |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| THD plus Noise | 0.000616 % |
| en - Input Voltage Noise Density | 14 nV/sqrt Hz |
| In - Input Noise Current Density | 1.8 fA/sqrt Hz |
| Ios - Input Offset Current | 3 pA |
| Moisture Sensitive | Yes |
| Product Type | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 1 uV/V |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | 4.4 V to 34 V |
| Unit Weight | 0.002677 oz |
For more information, please refer to datasheet
Documents
| OPA1688IDRGT Datasheet |
More Information
The OPA1688 36-V, single-supply, low-noise SoundPlus™ audio operational amplifier is capable of operating on supplies ranging from 4.5 V (±2.25 V) to 36 V (±18 V). This latest addition of a high-voltage audio operational amplifier in conjunction with the OPA16xx devices provide a family of bandwidth, noise, and power options to meet the needs of a wide variety of applications. The OPA1688 is available in a WSON micropackage, and offers low offset, drift, and quiescent current. This device also offers wide bandwidth, fast slew rate, and high output current drive capability.
