Texas Instruments

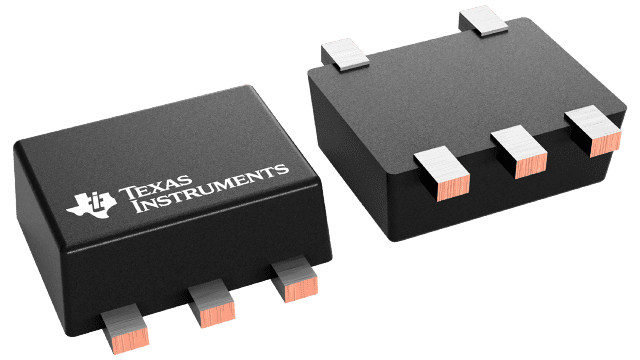

OPA170ASDRLTEP
OPA170ASDRLTEP
Regular price
$1.07 USD
Regular price
Sale price
$1.07 USD
Unit price
per
Couldn't load pickup availability
OPA170ASDRLTEP Texas Instruments - Yeehing Electronics
Enhanced product, single, 36-V, 1.2-MHz, low-power operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.434 |
| 100 — 249 | 2.836 |
| 250 — 999 | 2.037 |
| 1,000 + | 1.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-5X3-5 |
| SR - Slew Rate | 0.4 V/us |
| CMRR - Common Mode Rejection Ratio | 87 dB to 120 dB |
| Ib - Input Bias Current | 15 pA |
| Vos - Input Offset Voltage | 1.8 mV |
| Operating Supply Current | 110 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Shutdown | No Shutdown |
| Series | OPA170-EP |
| Packaging | Reel |
| Features | EMI Hardened |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| Operating Supply Voltage | 2.7 V to 36 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 130 dB |
| Part # Aliases | V62/12627-01XE |
| Unit Weight | 0.000099 oz |
For more information, please refer to datasheet
Documents
| OPA170ASDRLTEP Datasheet |
More Information
The OPA170 is a 36-V, single-supply, low-noise operational amplifier that features a micro package with the ability to operate on supplies ranging from +2.7V (±1.35V) to +36V (±18V). It offers good offset, drift, and bandwidth with low quiescent current.
