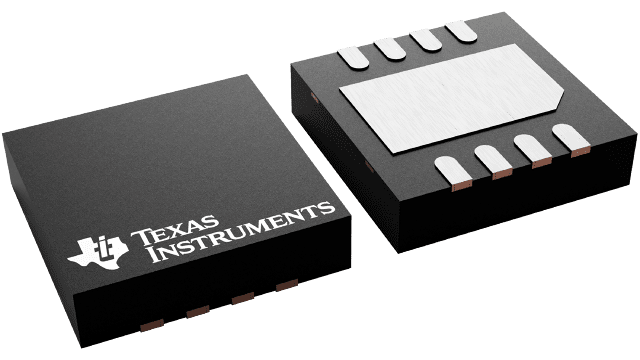

OPA211AIDRGT Texas Instruments - Yeehing Electronics

1.1nV/rtHz Noise, Low-Power, Precision Operational Amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	7.386
100 — 249	6.021
250 — 999	4.733
1,000 +	2.81

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Precision Amplifiers
RoHS	Y
Series	OPA211
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	80 MHz
SR - Slew Rate	27 V/us
CMRR - Common Mode Rejection Ratio	110 dB to 120 dB
Output Current per Channel	30 mA
Ib - Input Bias Current	125 nA
Vos - Input Offset Voltage	0.05 mV
en - Input Voltage Noise Density	2 nV/sqrt Hz
Supply Voltage - Max	36 V
Supply Voltage - Min	4.5 V
Operating Supply Current	3.6 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Shutdown	Shutdown
Mounting Style	SMD/SMT
Package / Case	WSON-8
Packaging	Reel
Amplifier Type	Low Power Amplifier
Features	Shutdown, Small Size
Height	0.73 mm
Length	3 mm
Output Type	Rail-to-Rail
Product	Precision Amplifiers
Supply Type	Single, Dual
Technology	SiGe Bipolar
Width	3 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 3 V, +/- 5 V, +/- 9 V
In - Input Noise Current Density	3.2 pA/sqrt Hz
Maximum Dual Supply Voltage	+/- 18 V
Minimum Dual Supply Voltage	+/- 2.25 V
Moisture Sensitive	Yes
Operating Supply Voltage	4.5 V to 36 V, +/- 2.25 V to +/- 18 V
Product Type	Precision Amplifiers
PSRR - Power Supply Rejection Ratio	140 dB
Factory Pack Quantity	250
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	+/- 1.4 V
Voltage Gain dB	114 dB
Unit Weight	0.000384 oz

For more information, please refer to datasheet

Documents

OPA211AIDRGT Datasheet

More Information

The OPAx211 series of precision operational amplifiers achieves very low 1.1-nV/√Hz noise density with a supply current of only 3.6 mA. This series also offers rail-to-rail output swing, which maximizes dynamic range.
