Texas Instruments
OPA211SHKQ
OPA211SHKQ
Regular price
$80.01 USD
Regular price
Sale price
$80.01 USD
Unit price
per
Couldn't load pickup availability

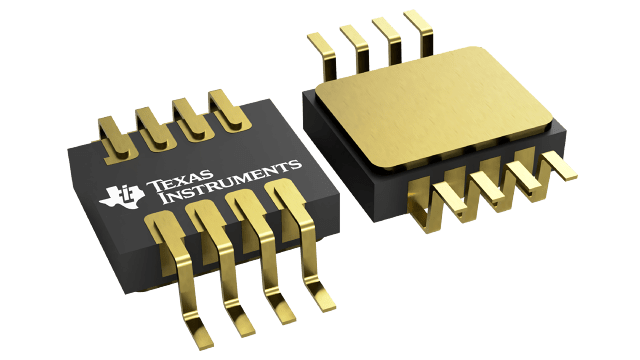

OPA211SHKQ Texas Instruments - Yeehing Electronics
High Temperature 1.1nV/rtHz Noise, Low Power, Precision Operational Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 132.59 |
| 100 — 249 | 120.017 |
| 250 — 999 | 116.588 |
| 1,000 + | 80.01 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Precision Amplifiers |
| RoHS | Y |
| Series | OPA211-HT |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 80 MHz |
| SR - Slew Rate | 27 V/us |
| CMRR - Common Mode Rejection Ratio | 110 dB to 120 dB |
| Output Current per Channel | 30 mA |
| Ib - Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 0.26 mV |
| Supply Voltage - Max | 36 V |
| Supply Voltage - Min | 4.5 V |
| Operating Supply Current | 3.6 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 210 C |
| Shutdown | Shutdown |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-8 |
| Packaging | Tube |
| Features | Shutdown |
| Output Type | Rail-to-Rail |
| Product | Precision Amplifiers |
| Supply Type | Single, Dual |
| Brand | Texas Instruments |
| Minimum Dual Supply Voltage | +/- 2.25 V |
| Operating Supply Voltage | 4.5 V to 36 V, +/- 2.25 V to +/- 18 V |
| Product Type | Precision Amplifiers |
| Factory Pack Quantity | 1 |
| Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
| OPA211SHKQ Datasheet |
More Information
The OPA211 series of precision operational amplifiers achieves very low 1.1 nV/√Hz noise density with a supply current of only 3.6 mA. This series also offers rail-to-rail output swing, which maximizes dynamic range.
