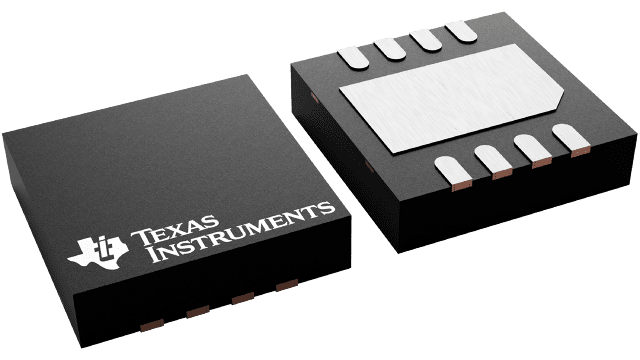

OPA2172IDRGT Texas Instruments - Yeehing Electronics
Dual, 36-V, 10-MHz, low-power operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.657 |
| 100 — 249 | 2.194 |
| 250 — 999 | 1.576 |
| 1,000 + | 0.95 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SON-8 |
| Supply Voltage - Max | 36 V |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 10 MHz |
| SR - Slew Rate | 10 V/us |
| CMRR - Common Mode Rejection Ratio | 110 dB to 120 dB |
| Ib - Input Bias Current | 15 pA |
| Vos - Input Offset Voltage | 1 mV |
| Supply Voltage - Min | 4.5 V |
| Operating Supply Current | 1.6 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | OPA2172 |
| Packaging | Reel |
| Amplifier Type | Low Noise Amplifier |
| Features | EMI Hardened, Small Size |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| THD plus Noise | 0.00005 % |
| en - Input Voltage Noise Density | 7 nV/sqrt Hz |
| In - Input Noise Current Density | 1.6 fA/sqrt Hz |
| Ios - Input Offset Current | 3 nA |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 36 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | 4.4 V to 34 V |
| Unit Weight | 0.002677 oz |
For more information, please refer to datasheet
Documents
| OPA2172IDRGT Datasheet |
More Information
The OPA172, OPA2172 and OPA4172 (OPAx172) are a family of 36-V, single-supply, low-noise operational amplifiers capable of operating on supplies ranging from +4.5 V (±2.25 V) to +36 V
