Texas Instruments

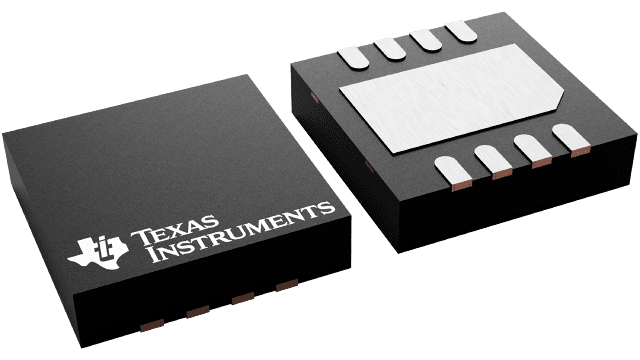

OPA2211AIDRGR
OPA2211AIDRGR
Regular price
$4.03 USD
Regular price
Sale price
$4.03 USD
Unit price
per
Couldn't load pickup availability
OPA2211AIDRGR Texas Instruments - Yeehing Electronics
1.1nV/rtHz Noise, Low Power, Precision Operational Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.356 |
| 100 — 249 | 7.299 |
| 250 — 999 | 5.628 |
| 1,000 + | 4.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Precision Amplifiers |
| RoHS | Y |
| Series | OPA2211A |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 80 MHz |
| SR - Slew Rate | 27 V/us |
| CMRR - Common Mode Rejection Ratio | 110 dB to 120 dB |
| Output Current per Channel | 30 mA |
| Ib - Input Bias Current | 175 nA |
| Vos - Input Offset Voltage | 0.15 mV |
| en - Input Voltage Noise Density | 2 nV/sqrt Hz |
| Supply Voltage - Max | 36 V |
| Supply Voltage - Min | 4.5 V |
| Operating Supply Current | 3.6 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Packaging | Reel |
| Amplifier Type | Low Power Amplifier |
| Features | Shutdown, Small Size |
| Height | 0.73 mm |
| Length | 3 mm |
| Output Type | Rail-to-Rail |
| Product | Precision Amplifiers |
| Supply Type | Single, Dual |
| Technology | SiGe Bipolar |
| Width | 3 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 3 V, +/- 5 V, +/- 9 V |
| In - Input Noise Current Density | 3.2 pA/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 18 V |
| Minimum Dual Supply Voltage | +/- 2.25 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 36 V, +/- 2.25 V to +/- 18 V |
| Product Type | Precision Amplifiers |
| PSRR - Power Supply Rejection Ratio | 140 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 114 dB |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| OPA2211AIDRGR Datasheet |
More Information
The OPAx211 series of precision operational amplifiers achieves very low 1.1-nV/√Hz noise density with a supply current of only 3.6 mA. This series also offers rail-to-rail output swing, which maximizes dynamic range.
