Texas Instruments
OPA2313IDRGT
OPA2313IDRGT
Regular price
$0.35 USD
Regular price
Sale price
$0.35 USD
Unit price
per
Couldn't load pickup availability

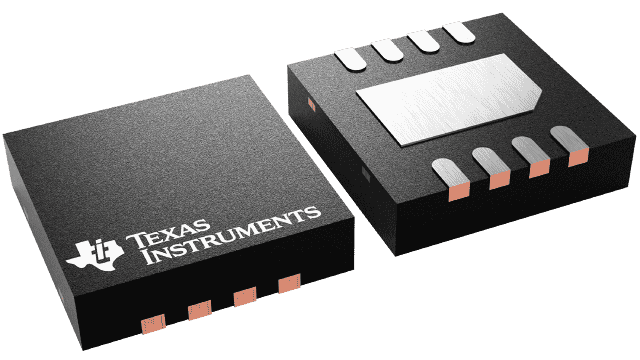

OPA2313IDRGT Texas Instruments - Yeehing Electronics
Dual, 5.5-V, 1-MHz, low quiescent current (50-μA), RRIO operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.242 |
| 100 — 249 | 0.956 |
| 250 — 999 | 0.704 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Supply Voltage - Max | 5.5 V |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 1 MHz |
| SR - Slew Rate | 0.5 V/us |
| CMRR - Common Mode Rejection Ratio | 64 dB to 80 dB |
| Ib - Input Bias Current | 10 pA |
| Vos - Input Offset Voltage | 2.5 mV |
| Supply Voltage - Min | 1.8 V |
| Operating Supply Current | 50 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | OPA2313 |
| Packaging | Reel |
| Amplifier Type | Operational Amplifier |
| Features | EMI Hardened, Small Size |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Supply Type | Dual |
| Technology | CMOS |
| Brand | Texas Instruments |
| en - Input Voltage Noise Density | 25 nV/sqrt Hz |
| Maximum Dual Supply Voltage | 5.5 V |
| Minimum Dual Supply Voltage | 1.8 V |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 110 dB |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| OPA2313IDRGT Datasheet |
More Information
The OPA313 family of single-, dual-, and quad-channel op amps represents a new generation of low-cost, general purpose, micro-power operational amplifiers. Featuring rail-to-rail input and very low noise (25 nV/√Hz at 1 kHz) makes this family very attractive for a variety of battery-powered applications that require a good balance between cost and performance. The low input bias current supports those op amps to be used in applications with megaohm source impedances.
