Texas Instruments
OPA2316IDRGR
OPA2316IDRGR
Regular price
$0.39 USD
Regular price
Sale price
$0.39 USD
Unit price
per
Couldn't load pickup availability

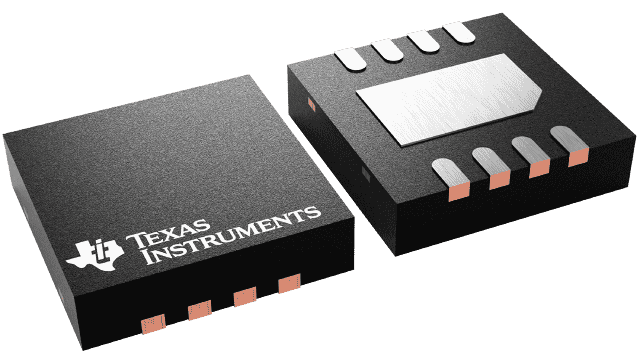

OPA2316IDRGR Texas Instruments - Yeehing Electronics
Dual, 5.5-V, 10-MHz, low noise (11-nV/√Hz), RRIO operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.257 |
| 100 — 249 | 1.038 |
| 250 — 999 | 0.746 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Number of Channels | 2 Channel |
| SR - Slew Rate | 6 V/us |
| CMRR - Common Mode Rejection Ratio | 66 dB to 80 dB |
| Ib - Input Bias Current | 15 pA |
| Vos - Input Offset Voltage | 2.5 mV |
| Operating Supply Current | 400 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | OPA2316 |
| Packaging | Reel |
| Amplifier Type | Low Power Amplifier |
| Features | EMI Hardened, Small Size |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
| OPA2316IDRGR Datasheet |
More Information
The OPAx316 family of single, dual, and quad operational amplifiers represents a new generation of general-purpose, low-power operational amplifiers. Featuring rail-to-rail input and output swings, low quiescent current (400 µA/ch typical) combined with a wide bandwidth of 10 MHz and very-low noise (11 nV/√Hz at 1 kHz) makes this family attractive for a variety of applications that require a good balance between cost and performance. The low input bias current supports those operational amplifiers to be used in applications with MΩ source impedances.
