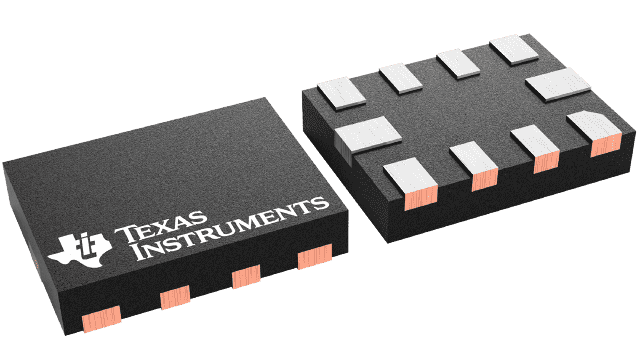

OPA2316SIRUGR Texas Instruments - Yeehing Electronics

Dual, 5.5-V, 10-MHz, low noise (11-nV/√Hz), RRIO operational amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	1.382
100 — 249	1.141
250 — 999	0.82
1,000 +	0.43

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	X2QFN-10
Supply Voltage - Max	7 V
Output Current per Channel	400 uA
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	10 MHz
SR - Slew Rate	6 V/us
CMRR - Common Mode Rejection Ratio	66 dB to 80 dB
Ib - Input Bias Current	15 pA
Vos - Input Offset Voltage	2.5 mV
Supply Voltage - Min	1.8 V
Operating Supply Current	400 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Shutdown	Shutdown
Series	OPA2316
Packaging	Reel
Features	EMI Hardened, Small Size
Input Type	Rail-to-Rail
Output Type	Rail-to-Rail
Product	Operational Amplifiers
Brand	Texas Instruments
Ios - Input Offset Current	2 pA
Product Type	Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio	30 uA
Factory Pack Quantity	3000
Subcategory	Amplifier ICs
Unit Weight	0.000180 oz

For more information, please refer to datasheet

Documents

OPA2316SIRUGR Datasheet

More Information

The OPAx316 family of single, dual, and quad operational amplifiers represents a new generation of general-purpose, low-power operational amplifiers. Featuring rail-to-rail input and output swings, low quiescent current (400 µA/ch typical) combined with a wide bandwidth of 10 MHz and very-low noise (11 nV/√Hz at 1 kHz) makes this family attractive for a variety of applications that require a good balance between cost and performance. The low input bias current supports those operational amplifiers to be used in applications with MΩ source impedances.
