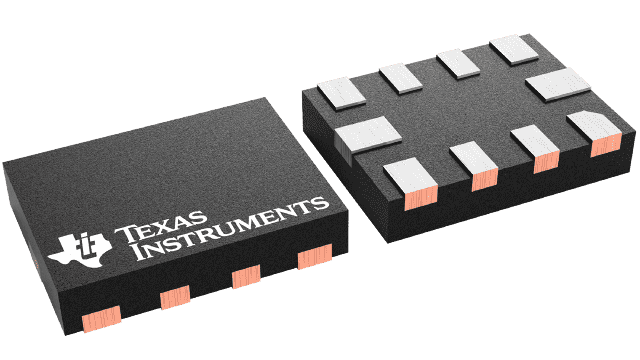

OPA2316SIRUGT Texas Instruments - Yeehing Electronics

Dual, 5.5-V, 10-MHz, low noise (11-nV/√Hz), RRIO operational amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	1.633
100 — 249	1.349
250 — 999	0.969
1,000 +	0.51

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	X2QFN-10
Supply Voltage - Max	5.5 V
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	10 MHz
SR - Slew Rate	6 V/us
CMRR - Common Mode Rejection Ratio	66 dB to 80 dB
Ib - Input Bias Current	15 pA
Vos - Input Offset Voltage	2.5 mV
Supply Voltage - Min	1.8 V
Operating Supply Current	400 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Shutdown	Shutdown
Series	OPA2316
Packaging	Reel
Amplifier Type	Operational Amplifier
Features	EMI Hardened, Small Size
Input Type	Rail-to-Rail
Output Type	Rail-to-Rail
Product	Operational Amplifiers
Brand	Texas Instruments
THD plus Noise	0.0008 %
en - Input Voltage Noise Density	11 nV/sqrt Hz
In - Input Noise Current Density	1.3 fA/sqrt Hz
Ios - Input Offset Current	2 pA
Product Type	Op Amps - Operational Amplifiers
Factory Pack Quantity	250
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	5.5 V
Unit Weight	0.000180 oz

For more information, please refer to datasheet

Documents

OPA2316SIRUGT Datasheet

More Information

The OPAx316 family of single, dual, and quad operational amplifiers represents a new generation of general-purpose, low-power operational amplifiers. Featuring rail-to-rail input and output swings, low quiescent current (400 µA/ch typical) combined with a wide bandwidth of 10 MHz and very-low noise (11 nV/√Hz at 1 kHz) makes this family attractive for a variety of applications that require a good balance between cost and performance. The low input bias current supports those operational amplifiers to be used in applications with MΩ source impedances.
