Texas Instruments
OPA2333SHKQ
OPA2333SHKQ
Regular price
$54.57 USD
Regular price
Sale price
$54.57 USD
Unit price
per
Couldn't load pickup availability

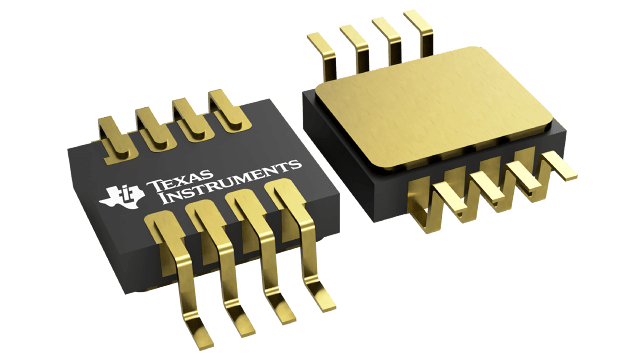

OPA2333SHKQ Texas Instruments - Yeehing Electronics
High Temperature 1.8-V Micropower CMOS Operational Amplifier Zero-Drift Series
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 103.691 |
| 100 — 249 | 100.572 |
| 250 — 999 | 83.732 |
| 1,000 + | 54.57 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | CFP-8 |
| Supply Voltage - Max | 5.5 V |
| Output Current per Channel | 5 mA |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 350 kHz |
| SR - Slew Rate | 0.16 V/us |
| CMRR - Common Mode Rejection Ratio | 102 dB to 130 dB |
| Ib - Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 0.01 mV |
| Supply Voltage - Min | 1.8 V |
| Operating Supply Current | 17 uA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 210 C |
| Shutdown | No Shutdown |
| Series | OPA2333-HT |
| Packaging | Tube |
| Features | EMI Hardened, Zero Drift |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Brand | Texas Instruments |
| Minimum Dual Supply Voltage | +/- 0.9 V |
| Operating Supply Voltage | 1.8 V to 5.5 V, +/- 0.9 V to +/- 2.75 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 1 |
| Subcategory | Amplifier ICs |
For more information, please refer to datasheet
Documents
| OPA2333SHKQ Datasheet |
More Information
The OPA2333 series of CMOS operational amplifiers uses a proprietary auto-calibration technique to simultaneously provide very low offset voltage and near-zero drift over time and temperature(1). These miniature, high-precision, low-quiescent-current amplifiers offer high-impedance inputs that have a common-mode range 100 mV beyond the rails, and rail-to-rail output that swings within 150 mV of the rails. Single or dual supplies as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V) may be used. They are optimized for low-voltage single-supply operation.
