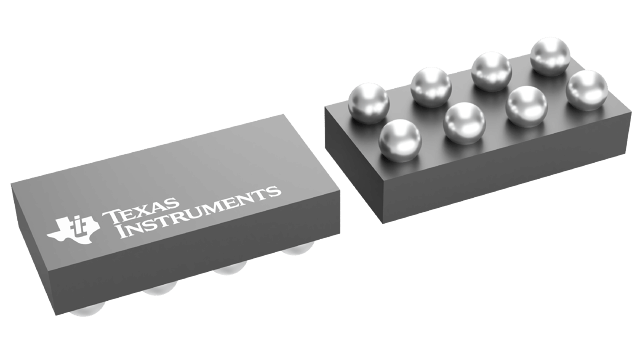

OPA2347YZDT Texas Instruments - Yeehing Electronics

Dual, 5.5-V, 350-kHz, low quiescent current (20-μA), RRIO operational amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	1.534
100 — 249	1.267
250 — 999	0.91
1,000 +	0.48

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	DSBGA-8
Supply Voltage - Max	5.5 V
Output Current per Channel	17 mA
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	350 kHz
SR - Slew Rate	0.17 V/us
CMRR - Common Mode Rejection Ratio	70 dB to 80 dB
Ib - Input Bias Current	10 pA
Vos - Input Offset Voltage	6 mV
Supply Voltage - Min	2.3 V
Operating Supply Current	20 uA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Shutdown	No Shutdown
Series	OPA2347
Packaging	Reel
Amplifier Type	Low Input Bias Current Amplifier
Features	Small Size
Height	0.65 mm
Input Type	Rail-to-Rail
Length	2.3 mm
Output Type	Rail-to-Rail
Product	Operational Amplifiers
Supply Type	Single
Technology	CMOS
Width	1.3 mm
Brand	Texas Instruments
Dual Supply Voltage	2.3 V to 5.5 V
en - Input Voltage Noise Density	60 nV/sqrt Hz
In - Input Noise Current Density	0.0007 pA/sqrt Hz
Maximum Dual Supply Voltage	5.5 V
Minimum Dual Supply Voltage	2.3 V
Operating Supply Voltage	2.3 V to 5.5 V
Product Type	Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio	128 dB
Factory Pack Quantity	250
Subcategory	Amplifier ICs
Voltage Gain dB	115 dB
Unit Weight	0.000081 oz

For more information, please refer to datasheet

Documents

OPA2347YZDT Datasheet

More Information

The OPA347 is a microPower, low-cost operational amplifier available in micropackages. The OPA347 (single version) is available in the SC-70 and SOT23-5 packages. The OPA2347 (dual version) is available in the SOT23-8 and WCSP-8 packages. Both are also available in the SO-8. The OPA347 is also available in the DIP-8. The OPA4347 (quad) is available in the SO-14 and the TSSOP-14.
