Texas Instruments
OPA2541AM
OPA2541AM
Regular price
$170.37 USD
Regular price
Sale price
$170.37 USD
Unit price
per
Couldn't load pickup availability

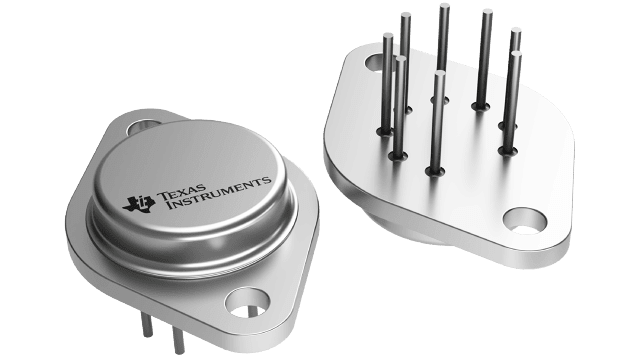

OPA2541AM Texas Instruments - Yeehing Electronics
Dual High Power Operational Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 282.327 |
| 100 — 249 | 255.554 |
| 250 — 999 | 248.253 |
| 1,000 + | 170.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | E |
| Mounting Style | Through Hole |
| Package / Case | TO-3-8 |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 1.6 MHz |
| SR - Slew Rate | 8 V/us |
| CMRR - Common Mode Rejection Ratio | 95 dB to 106 dB |
| Ib - Input Bias Current | 50 pA |
| Vos - Input Offset Voltage | 1 mV |
| Operating Supply Current | 20 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | OPA2541 |
| Packaging | Tube |
| Amplifier Type | High Output Current Amplifier |
| Height | 7.11 mm |
| Length | 38.86 mm |
| Product | Operational Amplifiers |
| Supply Type | Dual |
| Technology | BiFET |
| Width | 25.4 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 12 V, +/- 15 V, +/- 18 V |
| Maximum Dual Supply Voltage | +/- 35 V |
| Minimum Dual Supply Voltage | +/- 10 V |
| Operating Supply Voltage | +/- 10 V to +/- 35 V |
| Pd - Power Dissipation | 125 W |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 18 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 96 dB |
For more information, please refer to datasheet
Documents
| OPA2541AM Datasheet |
More Information
The OPA2541 is a dual power operational amplifier capable of operation from power supplies up to ±40V and output currents of 5A continuous. With two monolithic power amplifiers in a single package it provides unequaled functional density.
