Description

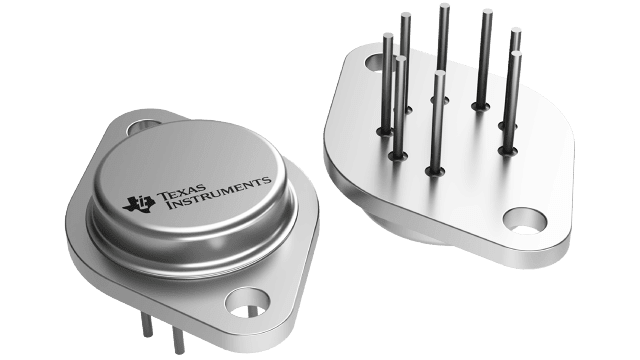

OPA2541SMQ Texas Instruments - Yeehing Electronics
Dual High Power Operational Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 305.854 |
100 — 249 | 276.85 |
250 — 999 | 268.94 |
1,000 + | 184.57 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | E |
Mounting Style | Through Hole |
Package / Case | TO-3-8 |
Number of Channels | 2 Channel |
GBP - Gain Bandwidth Product | 1.6 MHz |
SR - Slew Rate | 8 V/us |
CMRR - Common Mode Rejection Ratio | 95 dB to 106 dB |
Ib - Input Bias Current | 50 pA |
Vos - Input Offset Voltage | 1 mV |
Operating Supply Current | 20 mA |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Shutdown | No Shutdown |
Series | OPA2541 |
Packaging | Tube |
Amplifier Type | High Output Current Amplifier |
Height | 7.11 mm |
Length | 38.86 mm |
Product | Operational Amplifiers |
Supply Type | Dual |
Technology | BiFET |
Width | 25.4 mm |
Brand | Texas Instruments |
Dual Supply Voltage | +/- 12 V, +/- 15 V, +/- 18 V |
Maximum Dual Supply Voltage | +/- 40 V |
Minimum Dual Supply Voltage | +/- 10 V |
Operating Supply Voltage | +/- 10 V to +/- 40 V |
Pd - Power Dissipation | 125 W |
Product Type | Op Amps - Operational Amplifiers |
Factory Pack Quantity | 1 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 96 dB |
For more information, please refer to datasheet
Documents
OPA2541SMQ Datasheet |
More Information
The OPA2541 is a dual power operational amplifier capable of operation from power supplies up to ±40V and output currents of 5A continuous. With two monolithic power amplifiers in a single package it provides unequaled functional density.
