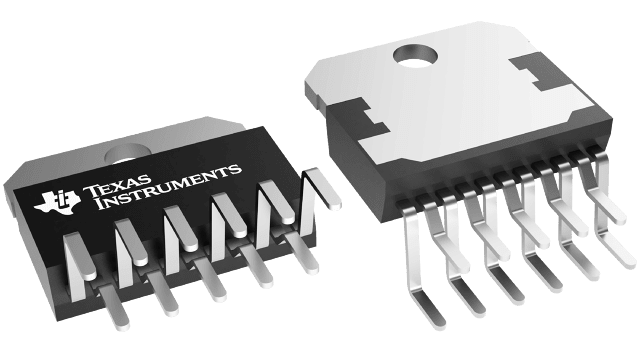

OPA2544T Texas Instruments - Yeehing Electronics

High-Voltage, High-Current Dual Operational Amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	21.693
100 — 249	18.949
250 — 999	14.61
1,000 +	9.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-220-11
Output Current per Channel	2 A
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	1.4 MHz
SR - Slew Rate	8 V/us
CMRR - Common Mode Rejection Ratio	90 dB to 106 dB
Ib - Input Bias Current	100 pA
Vos - Input Offset Voltage	5 mV
Operating Supply Current	12 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Shutdown	Shutdown
Series	OPA2544
Packaging	Tube
Amplifier Type	High Output Current Amplifier
Height	4.5 mm
Length	20.02 mm
Product	Operational Amplifiers
Supply Type	Dual
Technology	BiFET
Width	10.7 mm
Brand	Texas Instruments
Dual Supply Voltage	+/- 12 V, +/- 15 V, +/- 18 V
en - Input Voltage Noise Density	36 nV/sqrt Hz
In - Input Noise Current Density	0.003 pA/sqrt Hz
Maximum Dual Supply Voltage	+/- 35 V
Minimum Dual Supply Voltage	+/- 10 V
Operating Supply Voltage	+/- 10 V to +/- 35 V
Product Type	Op Amps - Operational Amplifiers
Factory Pack Quantity	25
Subcategory	Amplifier ICs
Vcm - Common Mode Voltage	Negative Rail + 6 V to Positive Rail - 6 V
Voltage Gain dB	103 dB
Unit Weight	0.181495 oz

For more information, please refer to datasheet

Documents

OPA2544T Datasheet

More Information

The OPA2544 is a dual high-voltage/high-current operational amplifier suitable for driving a wide variety of high power loads. It provides 2A output current and power supply voltage range extends to ±35V.
