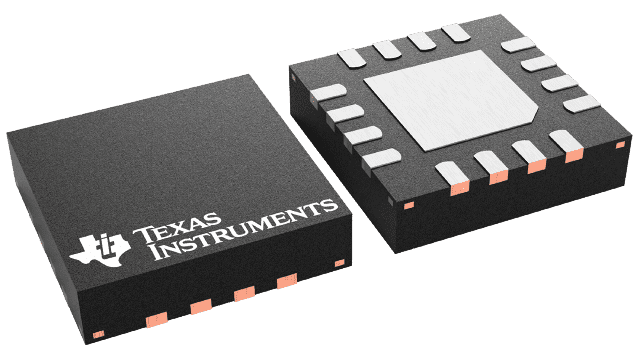

OPA2673IRGVR Texas Instruments - Yeehing Electronics
Dual, Wideband, High Output Current Amplifier and PLC Line Driver with Active Off-line Control
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.919 |
100 — 249 | 1.682 |
250 — 999 | 1.179 |
1,000 + | 0.66 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | High Speed Operational Amplifiers |
RoHS | Y |
Series | OPA2673 |
Number of Channels | 2 Channel |
SR - Slew Rate | 3 kV/us |
CMRR - Common Mode Rejection Ratio | 50 dB to 56 dB |
Ib - Input Bias Current | 25 uA |
Vos - Input Offset Voltage | 7 mV |
Operating Supply Current | 16 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-16 |
Packaging | Reel |
Amplifier Type | Current Feedback |
Features | Shutdown |
Height | 0.9 mm |
Length | 4 mm |
Product | Operational Amplifiers |
Width | 4 mm |
Brand | Texas Instruments |
Topology | Current Feedback |
en - Input Voltage Noise Density | 2.4 nV/sqrt Hz |
Moisture Sensitive | Yes |
Product Type | Op Amps - High Speed Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 49 dB |
Factory Pack Quantity | 2500 |
Subcategory | Amplifier ICs |
Unit Weight | 0.000850 oz |
For more information, please refer to datasheet
Documents
OPA2673IRGVR Datasheet |
More Information
The OPA2673 provides the high output current and low distortion required for power-line modem driver and test and measurement applications. The OPA2673 operates on power-supplies ranging from 5.75 V to 13 V and consumes a low 16.5 mA/channel quiescent current to deliver a very high 700 mA output current. The OPA2673 can support the most demanding power-line modem requirements with 460 mA assured minimum output current drive (at 25 °C).
