Texas Instruments
OPA2673IRGVT
OPA2673IRGVT
Regular price
$0.80 USD
Regular price
Sale price
$0.80 USD
Unit price
per
Couldn't load pickup availability

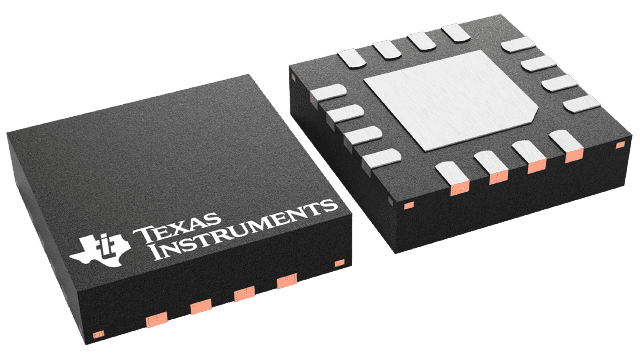

OPA2673IRGVT Texas Instruments - Yeehing Electronics
Dual, Wideband, High Output Current Amplifier and PLC Line Driver with Active Off-line Control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.303 |
| 100 — 249 | 2.018 |
| 250 — 999 | 1.415 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | High Speed Operational Amplifiers |
| RoHS | Y |
| Series | OPA2673 |
| Number of Channels | 2 Channel |
| SR - Slew Rate | 3 kV/us |
| CMRR - Common Mode Rejection Ratio | 50 dB to 56 dB |
| Ib - Input Bias Current | 25 uA |
| Vos - Input Offset Voltage | 7 mV |
| Operating Supply Current | 16 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Amplifier Type | Current Feedback |
| Features | Shutdown |
| Height | 0.9 mm |
| Length | 4 mm |
| Product | Operational Amplifiers |
| Width | 4 mm |
| Brand | Texas Instruments |
| Topology | Current Feedback |
| en - Input Voltage Noise Density | 2.4 nV/sqrt Hz |
| Moisture Sensitive | Yes |
| Product Type | Op Amps - High Speed Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 49 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000850 oz |
For more information, please refer to datasheet
Documents
| OPA2673IRGVT Datasheet |
More Information
The OPA2673 provides the high output current and low distortion required for power-line modem driver and test and measurement applications. The OPA2673 operates on power-supplies ranging from 5.75 V to 13 V and consumes a low 16.5 mA/channel quiescent current to deliver a very high 700 mA output current. The OPA2673 can support the most demanding power-line modem requirements with 460 mA assured minimum output current drive (at 25 °C).
