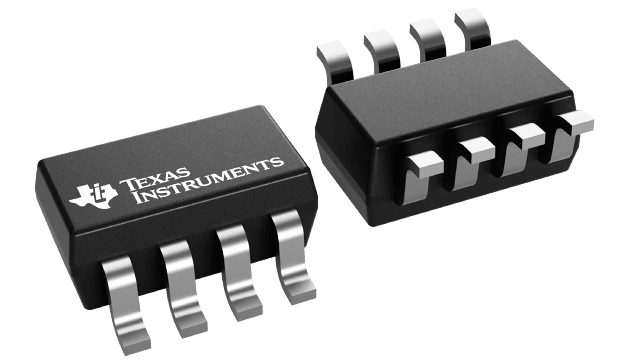

OPA2684IDCNT Texas Instruments - Yeehing Electronics

Dual, Low Power, Current Feedback Operational Amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	4.804
100 — 249	3.917
250 — 999	3.078
1,000 +	1.83

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	High Speed Operational Amplifiers
RoHS	Y
Series	OPA2684
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	140 MHz
SR - Slew Rate	820 V/us
CMRR - Common Mode Rejection Ratio	53 dB to 60 dB
Ib - Input Bias Current	11 uA
Vos - Input Offset Voltage	3.5 mV
Supply Voltage - Max	12 V
Supply Voltage - Min	5 V
Operating Supply Current	1.7 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SOT-23-8
Packaging	Reel
Amplifier Type	Current Feedback
Features	Small Size, Shutdown
Height	1.1 mm
Length	2.9 mm
Product	Operational Amplifiers
Width	1.63 mm
Brand	Texas Instruments
Topology	Current Feedback
en - Input Voltage Noise Density	3.7 nV/sqrt Hz
Moisture Sensitive	Yes
Operating Supply Voltage	12 V
Product Type	Op Amps - High Speed Operational Amplifiers
PSRR - Power Supply Rejection Ratio	58 dB
Factory Pack Quantity	250
Subcategory	Amplifier ICs
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

OPA2684IDCNT Datasheet

More Information

The OPA2684 provides a new level of performance in low-power, wideband, current-feedback (CFB) amplifiers. This CFBPLUS amplifier is among the first to use an internally closed-loop input buffer stage that enhances performance significantly over earlier low-power CFB amplifiers. While retaining the benefits of very low power operation, this new architecture provides many of the benefits of a more ideal CFB amplifier. The closed-loop input stage buffer gives a very low and linearized impedance path at the inverting input to sense the feedback error current. This improved inverting input impedance retains exceptional bandwidth to much higher gains and improves harmonic distortion over earlier solutions limited by inverting input linearity. Beyond simple high-gain applications, the OPA2684 CFBPLUS amplifier permits the gain setting element to be set with considerable freedom from amplifier bandwidth interaction. This allows frequency response peaking elements to be added, multiple input inverting summing circuits to have greater bandwidth, and low-power line drivers to meet the demanding requirements of studio cameras and broadcast video.
