Texas Instruments
OPA2835IRMCR
OPA2835IRMCR
Regular price
$0.98 USD
Regular price
Sale price
$0.98 USD
Unit price
per
Couldn't load pickup availability
OPA2835IRMCR Texas Instruments - Yeehing Electronics
Dual, Ultra Low Power, Rail to Rail Out, Negative Rail In, VFB Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.814 |
| 100 — 249 | 2.466 |
| 250 — 999 | 1.729 |
| 1,000 + | 0.98 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | High Speed Operational Amplifiers |
| RoHS | Y |
| Series | OPA2835 |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 31 MHz |
| SR - Slew Rate | 160 V/us |
| CMRR - Common Mode Rejection Ratio | 91 dB to 113 dB |
| Ib - Input Bias Current | 10 pA |
| Vos - Input Offset Voltage | 0.5 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| Operating Supply Current | 250 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |

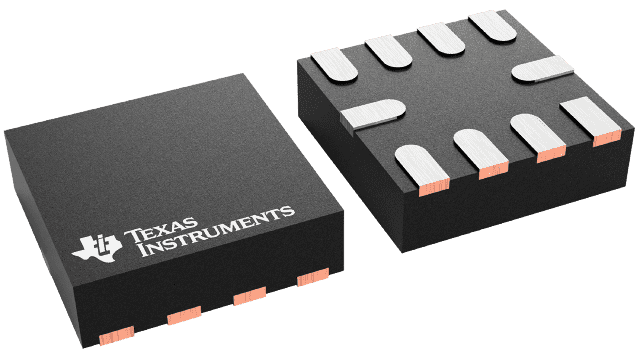

| Package / Case | UQFN-10 |
| Packaging | Reel |
| Amplifier Type | Voltage Feedback |
| Features | Shutdown |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| Topology | Voltage Feedback |
| en - Input Voltage Noise Density | 25 nV/sqrt Hz |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Product Type | Op Amps - High Speed Operational Amplifiers |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000353 oz |
For more information, please refer to datasheet
Documents
| OPA2835IRMCR Datasheet |
More Information
The OPA835 and OPA2835 devices (OPAx835) are single and dual ultra-low-power, rail-to-rail output, negative-rail input, voltage-feedback (VFB) operational amplifiers designed to operate over a power supply range of 2.5-V to 5.5-V with a single supply, or ±1.25-V to ±2.75-V with a dual supply. Consuming only 250 µA per channel and with a unity gain bandwidth of 56 MHz, these amplifiers set an industry-leading performance-to-power ratio for rail-to-rail amplifiers.
