Texas Instruments

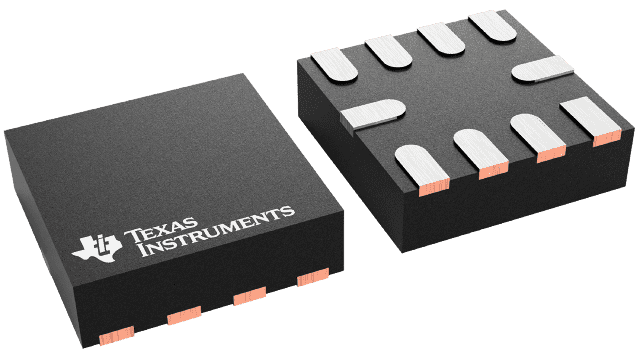

OPA2836IRMCT
OPA2836IRMCT
Regular price
$1.04 USD
Regular price
Sale price
$1.04 USD
Unit price
per
Couldn't load pickup availability
OPA2836IRMCT Texas Instruments - Yeehing Electronics
Dual, Very Low Power, Rail to Rail out, Negative Rail in, VFB Op Amp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.68 |
| 100 — 249 | 3.225 |
| 250 — 999 | 2.261 |
| 1,000 + | 1.04 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | High Speed Operational Amplifiers |
| RoHS | Y |
| Series | OPA2836 |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 110 MHz |
| SR - Slew Rate | 560 V/us |
| Voltage Gain dB | 125 dB |
| CMRR - Common Mode Rejection Ratio | 94 dB to 116 dB |
| Output Current per Channel | 45 mA |
| Ib - Input Bias Current | 650 nA |
| Vos - Input Offset Voltage | 0.4 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| Operating Supply Current | 1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-10 |
| Packaging | Reel |
| Amplifier Type | Voltage Feedback |
| Features | Small Size, Shutdown |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Brand | Texas Instruments |
| Topology | Voltage Feedback |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 5.5 V |
| Product Type | Op Amps - High Speed Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio | 108 dB |
| Settling Time | 22 ns |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000353 oz |
For more information, please refer to datasheet
Documents
| OPA2836IRMCT Datasheet |
More Information
The OPA836 and OPA2836 devices (OPAx836) are single- and dual-channel, ultra-low power, rail-to-rail output, negative-rail input, voltage-feedback (VFB) operational amplifiers designed to operate over a power-supply range of 2.5 V to 5.5 V with a single supply, or ±1.25 V to ±2.75 V with a dual supply. Consuming only 1 mA per channel and a unity-gain bandwidth of 205 MHz, these amplifiers set an industry-leading power-to-performance ratio for rail-to-rail amplifiers.
